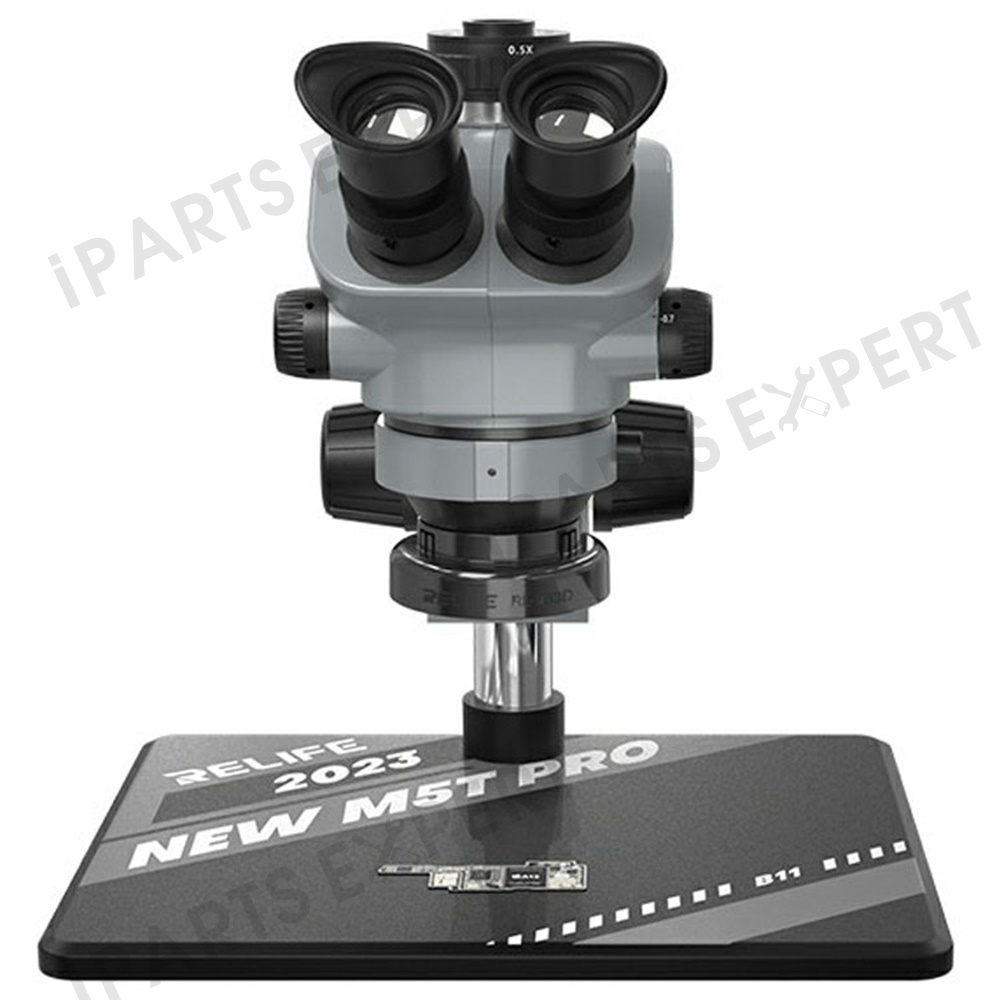

RELIFE RL-M5T Pro-B11 Trinocular HD Microscope 7-50X Zoom for PCB Inspection Repair
Rate: ( 0 reviews ) views: 62
Item No.: 6616001668A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 5+ units | 10+ units | 20+ units | 50+ units |
| $173.32 | $171.90 | $170.48 | $169.05 | $167.63 | $166.21 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Gross Weight :4.424kg
- Volume Weight :7.658kg
- Length :38.500cm
- Width :37.000cm
- Height :24.000cm
- Weight :3.950kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description

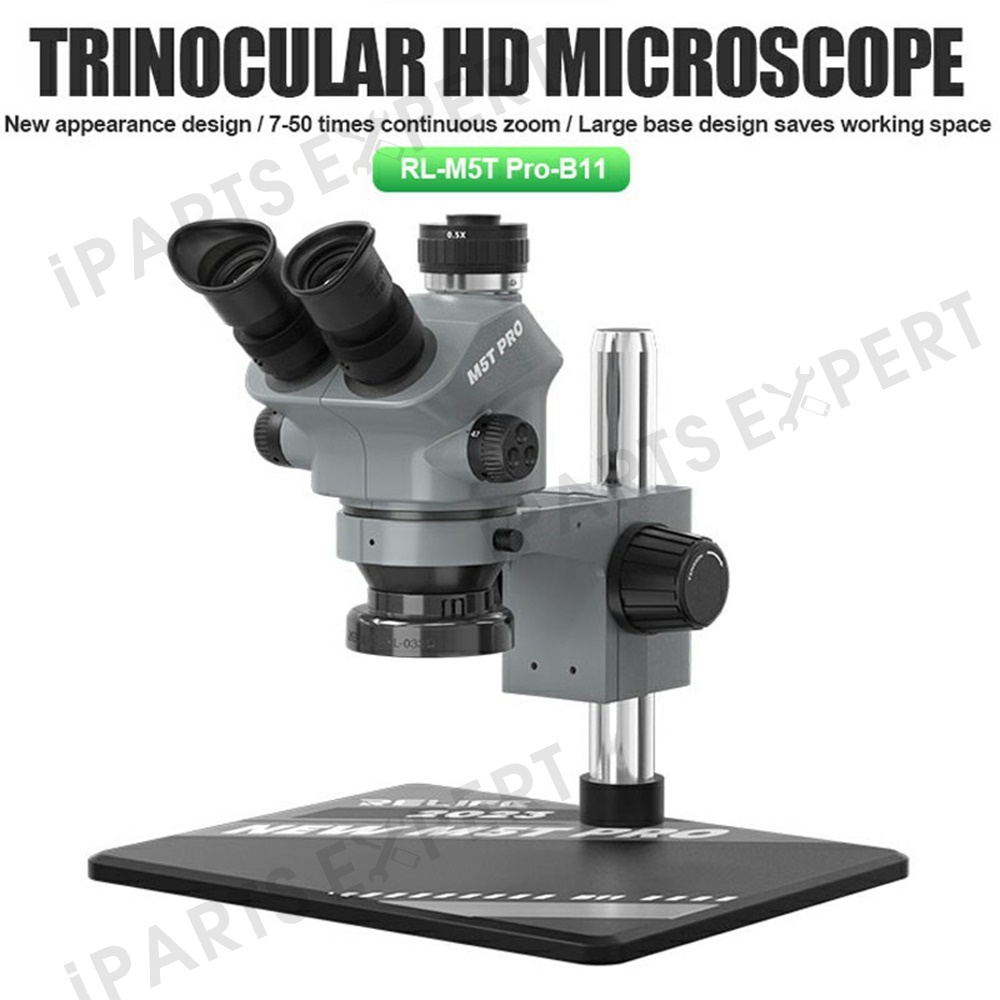

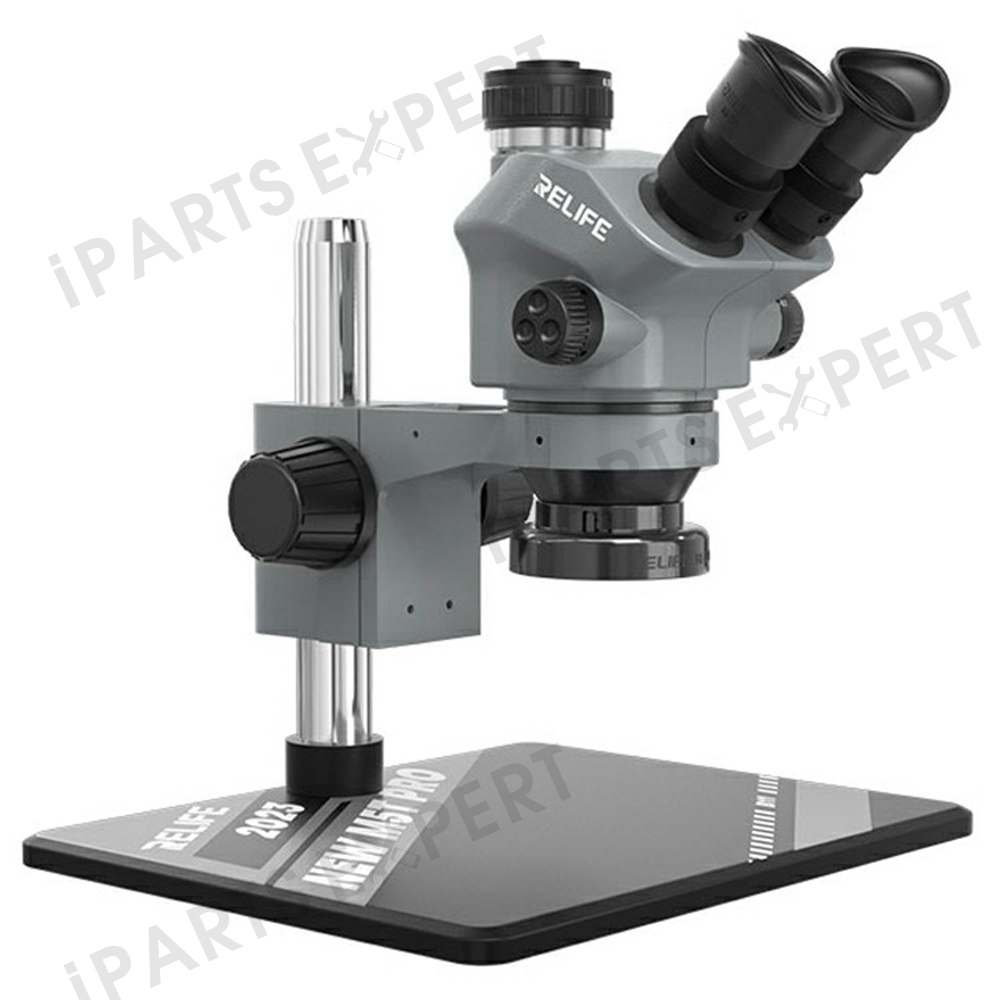

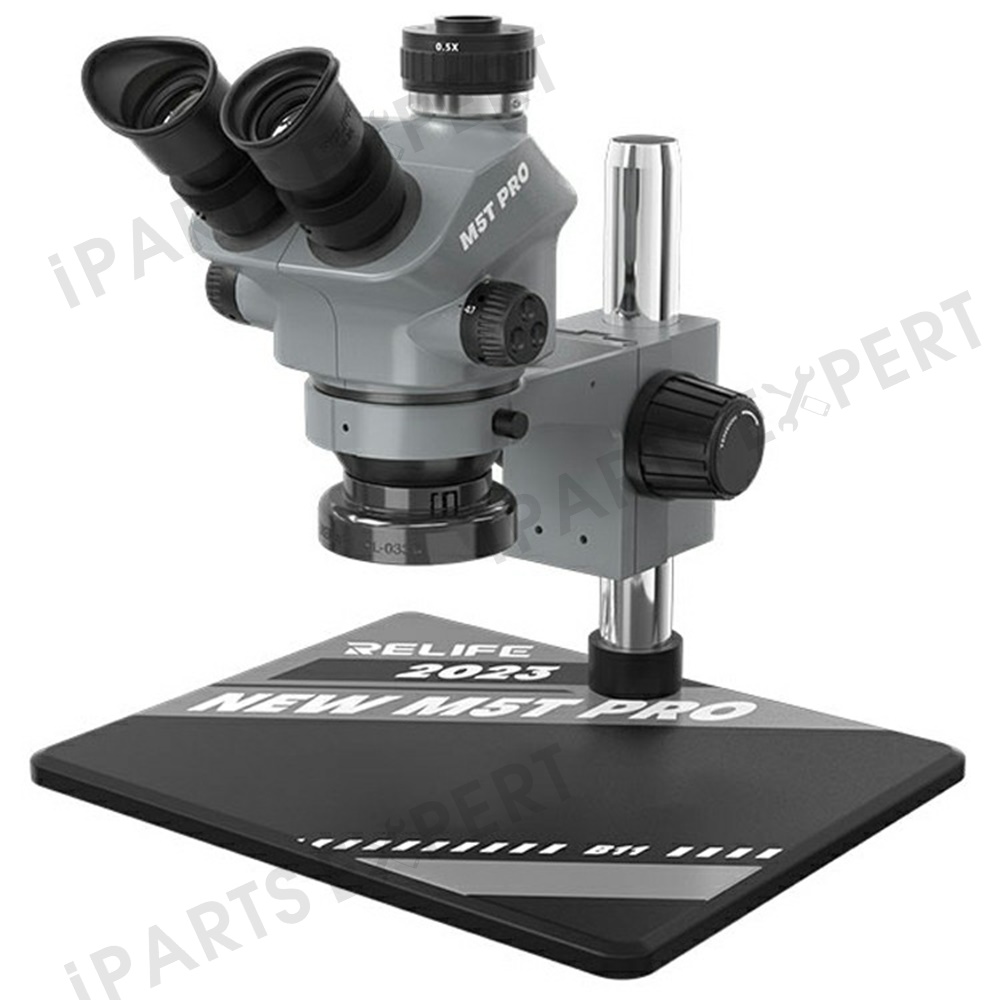

RELIFE RL-M5T Pro-B11 Trinocular HD Microscope 7-50X Zoom for PCB Inspection Repair

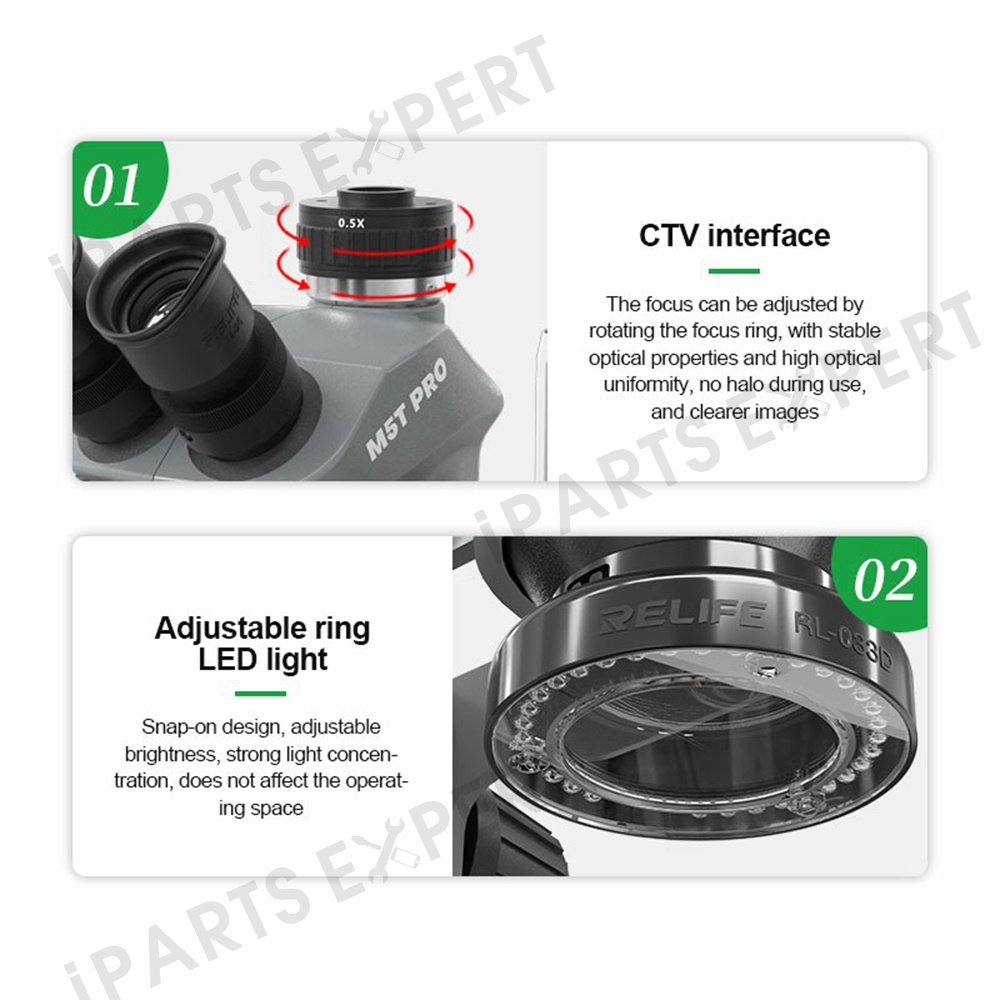

- 【Trinocular HD Stereo System】Features dual eyepieces plus CTV video output interface for simultaneous observation and external display connection, perfect for documentation and collaborative work.

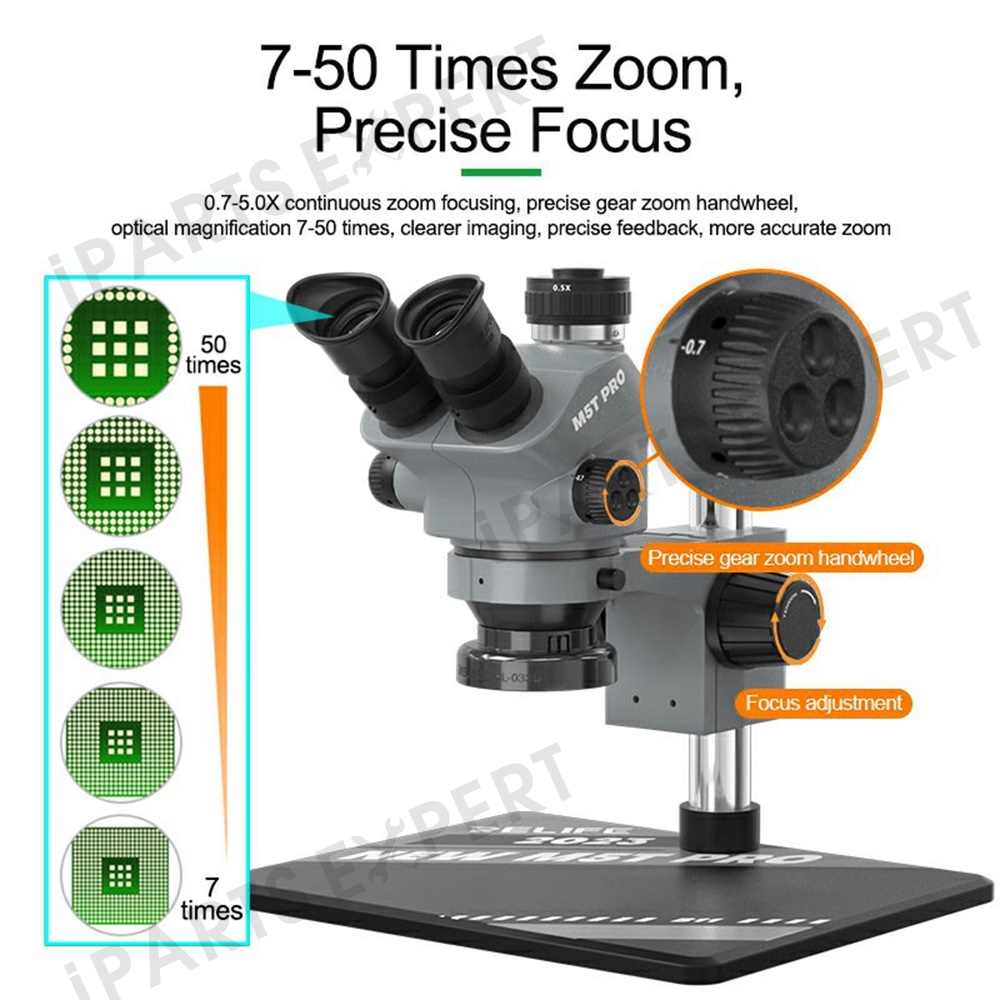

- 【Continuous 7-50X Zoom Range】0.7X-5.0X objective lens with 10X eyepieces provides seamless magnification from 7X to 50X with precise gear zoom handwheel for accurate focusing.

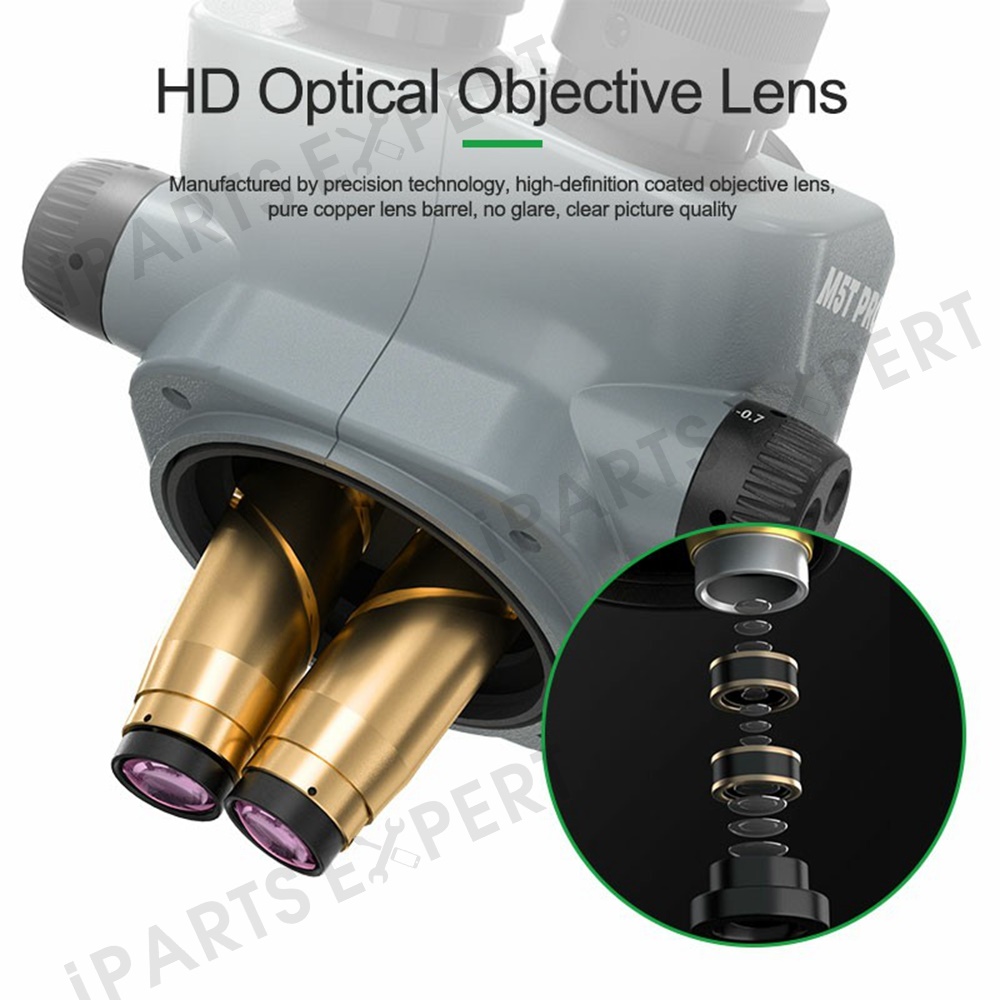

- 【HD Optical Imaging】High-definition coated objective lens with pure copper barrel construction eliminates glare and delivers crystal-clear, sharp imaging quality.

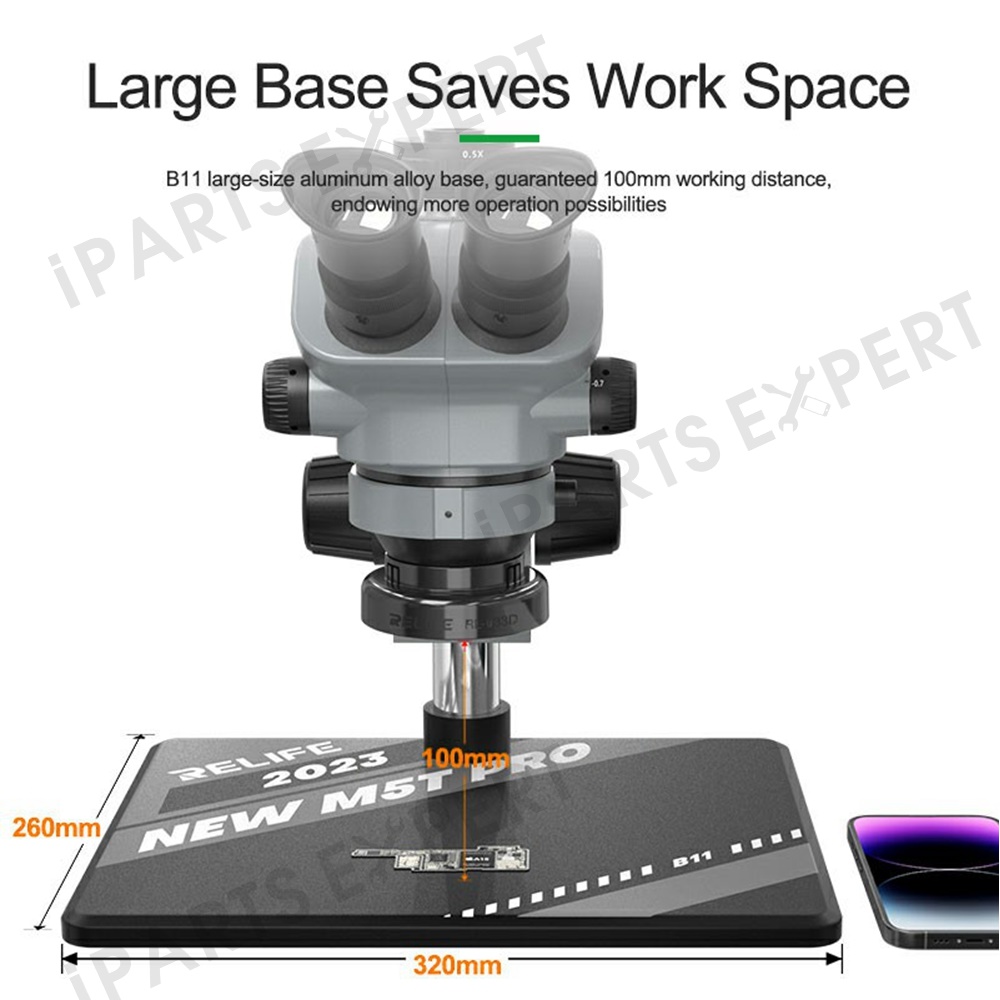

- 【Large Working Space Design】Oversized 260×320mm aluminum alloy base with guaranteed 100mm working distance accommodates large components and provides ample operation space.

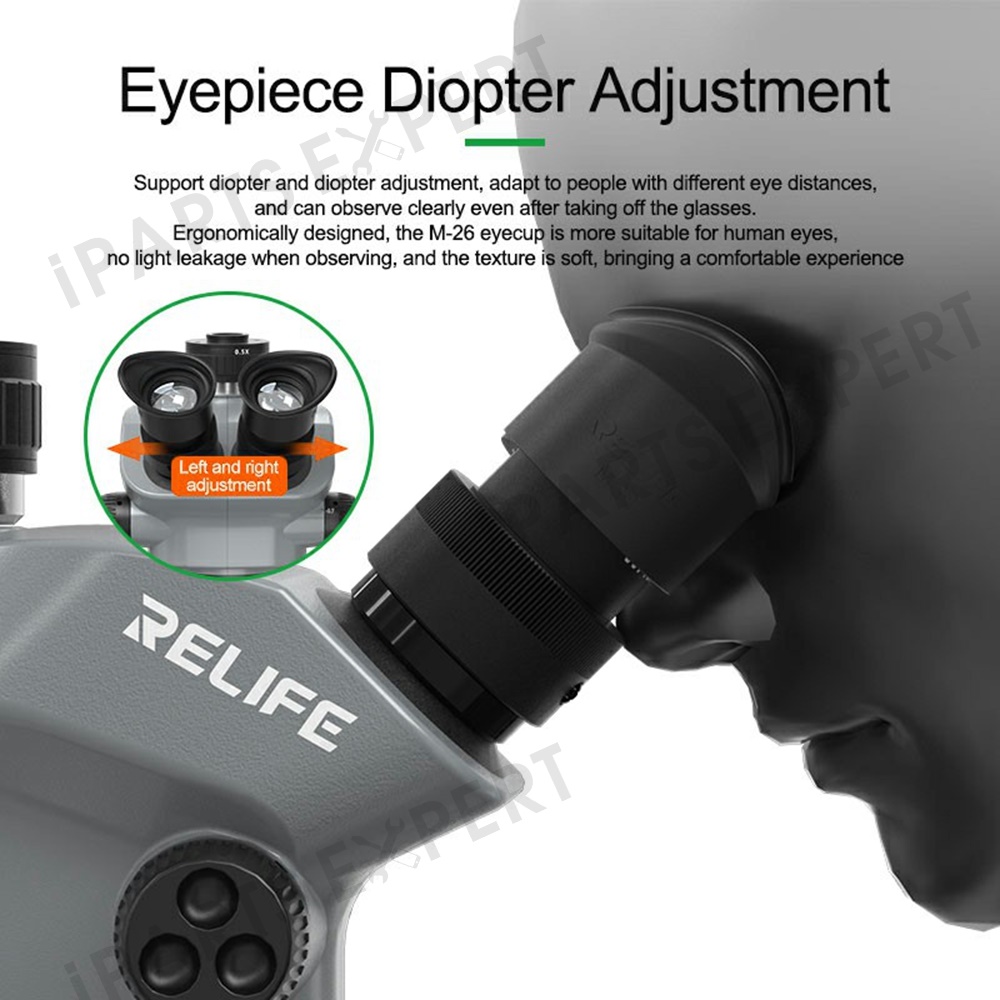

- 【Ergonomic Comfort Features】M-26 soft eyecups with diopter adjustment (±5D) and interpupillary distance control (52-75mm) ensure comfortable extended use even without glasses.
- 【Versatile Professional Applications】Ideal for mobile phone repair, PCB inspection, precision instrument maintenance, jewelry identification, and production line quality control.
- 【Adjustable LED Illumination】RL-033D quick-mount ring LED light source with brightness control provides strong focused lighting without obstructing workspace.
Specifications:
- Model: RL-M5T Pro-B11
- Optical System: 0.7X-5.0X continuous zoom objective

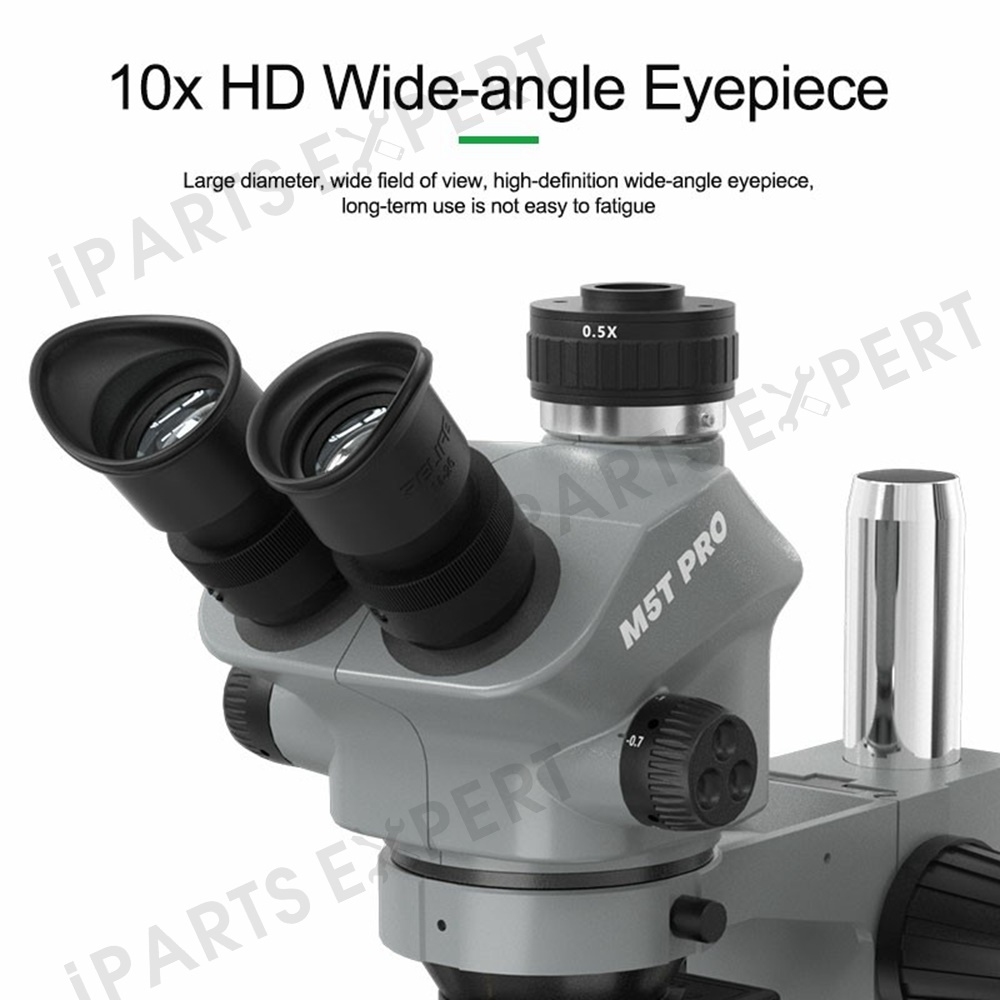

- Eyepieces: WF10X/22mm wide-angle high eye-point eyepieces (2 pieces)
- Total Magnification: 7X-50X
- Interpupillary Distance: 52-75mm adjustable
- Diopter Adjustment: ±5D with M-26 eyecups
- Working Distance: ≥100mm guaranteed
- Microscope Column: 245x32mm stainless steel
- Base Dimensions: 260x320x17mm aluminum alloy
- Light Source: RL-033D adjustable ring LED
- CTV Adapter: M-28 0.5X for external display connection
- Net Weight: 3kg

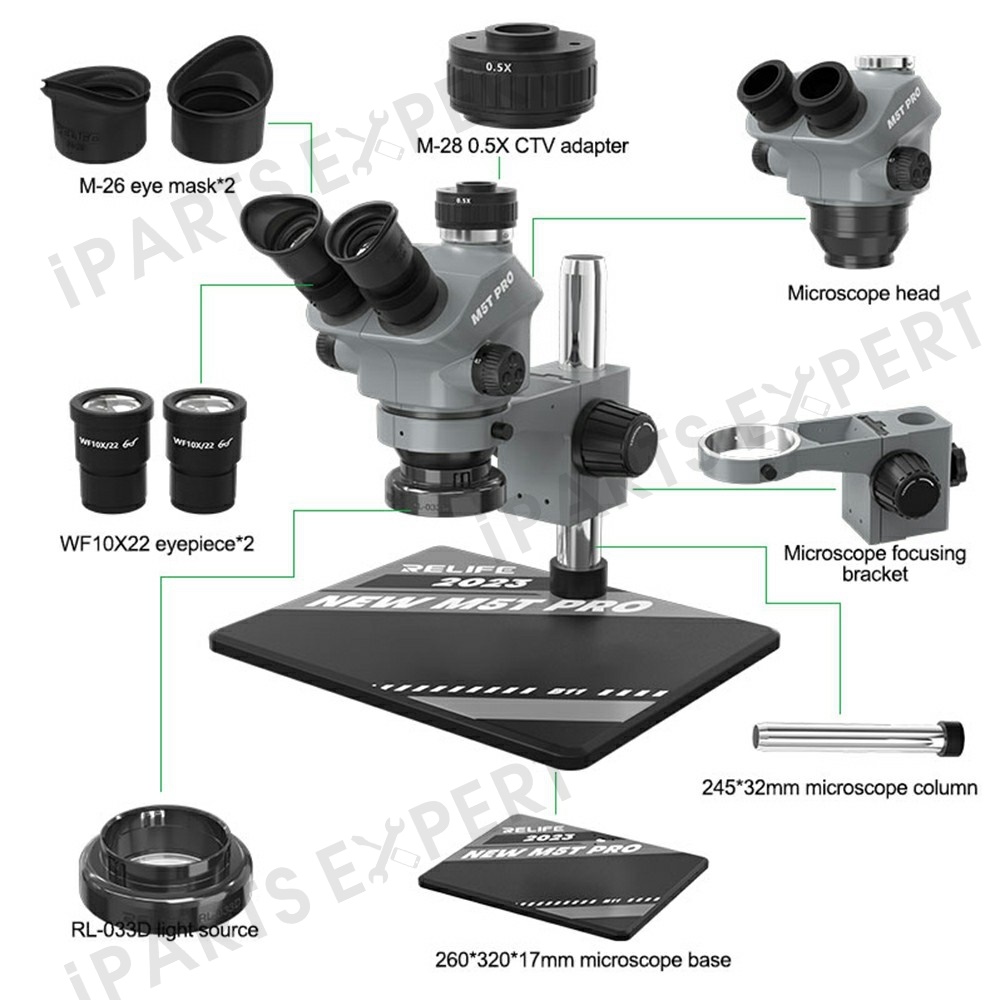

Package included:
- 2 x M-26 Eye Mask
- 1 x CTV Adapter
- 1 x Microscope Head
- 2 x WF10X22 Eyepiece
- 1 x RL-033D Light Source
- 1 x 260 x 320 x 17mm Microscope Base
- 1 x 245 x 32mm Microscope Column
- 1 x Microscope Focusing Bracket
- 1 x M-28 0.5X CTV Adapter
