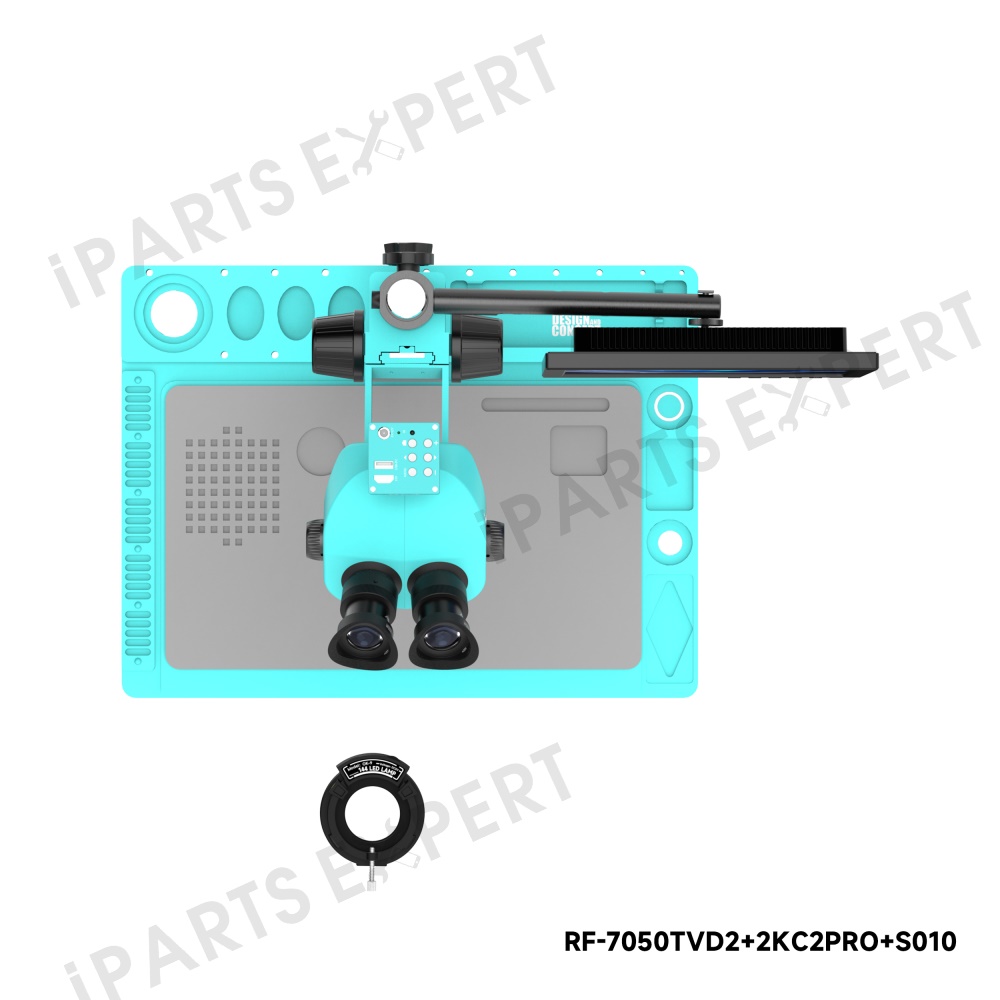

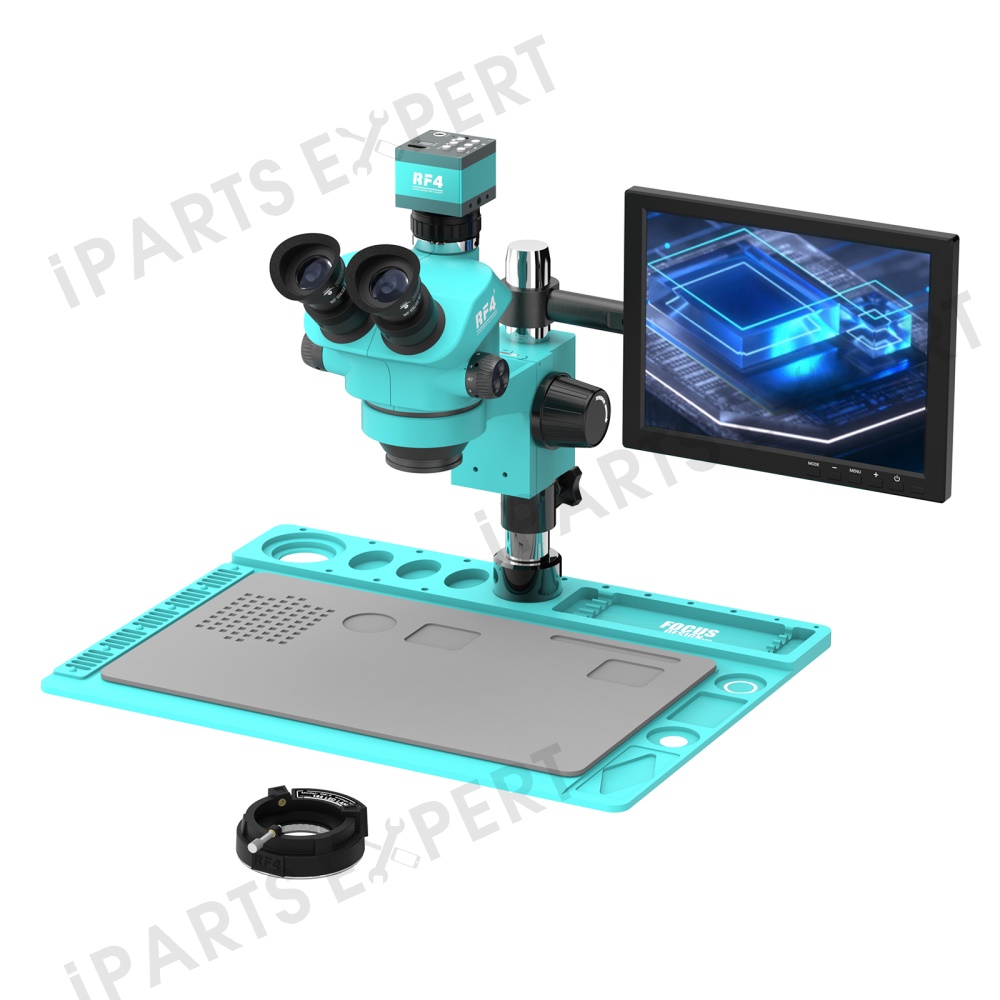

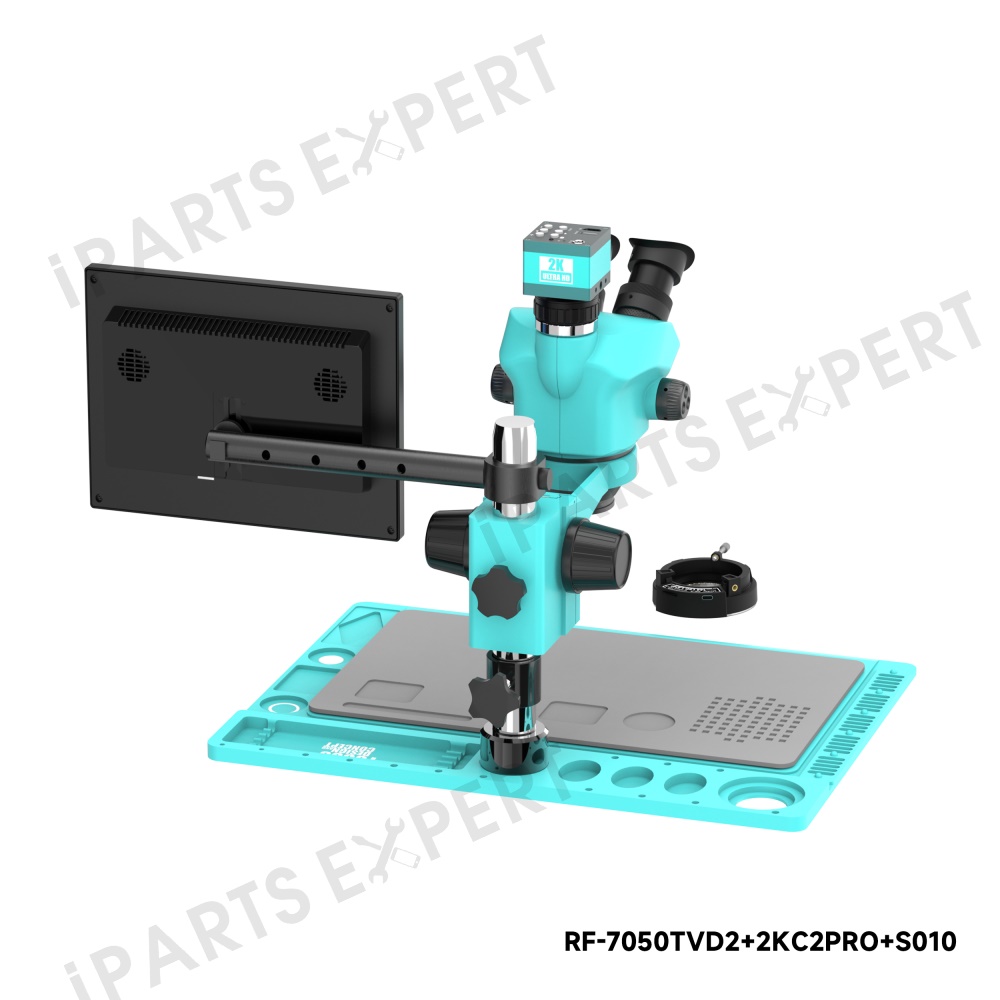

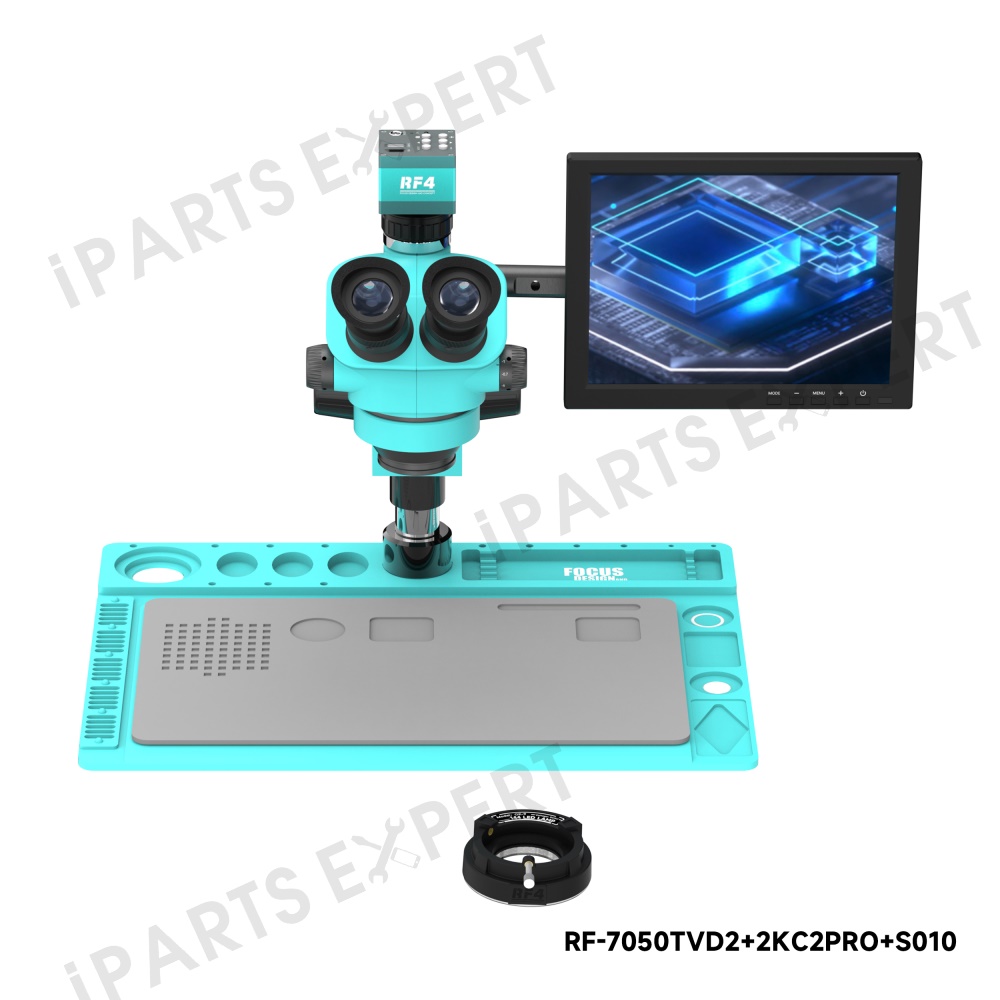

RF4 RF-7050TVD2+2KC2PRO+S010 2K HD Camera Trinocular Stereo Microscope 7-50X Zoom for PCB Repair
Rate: ( 0 reviews ) views: 62
Item No.: 6616001984A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 4+ units | 5+ units | 10+ units | 20+ units |
| $369.34 | $366.27 | $363.19 | $360.11 | $357.03 | $353.95 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :RF4
- Color :As Shown
- Gross Weight :8.904kg
- Volume Weight :12.277kg
- Length :54.000cm
- Width :35.000cm
- Height :29.000cm
- Weight :7.950kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description
RF4 RF-7050TVD2+2KC2PRO+S010 2K HD Camera Trinocular Stereo Microscope 7-50X Zoom for PCB Repair
- 【2K Ultra HD Imaging】Equipped with 2K high-definition camera that captures detailed images for precise component inspection and electronic repair work.
- 【Trinocular Stereo Design】Features trinocular configuration providing comfortable binocular viewing with third port for camera attachment, reducing eye strain during extended use.
- 【Continuous Zoom 7X-50X】Variable magnification from 7X to 50X allows detailed inspection and repair tasks with smooth zoom adjustment for different working requirements.
- 【10 Inch HD Display】Large 10-inch high-definition monitor provides clear and detailed real-time view, enhancing work precision and accuracy for electronic maintenance.
- 【144 LED Ring Light】Bright 144 LED ring lighting system ensures consistent and uniform illumination, improving visibility and reducing eye fatigue during prolonged operations.
- 【Professional Repair Workstation】Includes specialized aluminum alloy repair base with anti-static mat, positioning holes and grooves designed specifically for PCB and IC chip maintenance.
Specifications:
- Model: RF-7050TVD2+2KC2PRO+S010
- Resolution: 2K Ultra HD
- Magnification Range: 7X-50X Continuous Zoom
- Head Design: 45° Tilt, 360° Rotation Trinocular
- Eyepieces: WF10X/22mm
- Barlow Lens: 0.5X & 0.7X & 2.0X (Optional)
- Objective: 0.7-5.0X
- Camera Connector: 0.5X CTV
- Lighting: 144 Adjustable LED Ring Light
- Display: 10 inch HD/VGA Input
- Boom Stand: 250mm & φ32mm Column
- Base Dimensions: 300mm × 400mm Multifunctional Aluminum Alloy Repair Base
- Working Distance: Variable with Zoom Range
Package included:
- 1 x Microscope Camera
- 1 x HD Interface
- 1 x USB Cable
- 1 x English and Chinese User Manual
- 1 x Power Cord
- 1 x Remote Control
- 1 x Microscope Main Unit
- 1 x Display Screen
- 1 x Stand
- 1 x 0.5X CTV
- 1 x 144 LED Light
- 1 x Dustproof Mirror
- 1 x 300x400mm Multifunctional Maintenance Base
