RF4 RF7050TVD2-YS010W 7-50X Synchronized Zoom Trinocular Microscope with 10 inch 1080P HD Monitor
Rate: ( 0 reviews ) views: 62
Item No.: 6616002015A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 4+ units | 5+ units | 10+ units | 20+ units |
| $427.67 | $424.11 | $420.55 | $416.98 | $413.42 | $409.85 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :RF4
- Color :As Shown
- Gross Weight :7.840kg
- Volume Weight :12.050kg
- Length :53.000cm
- Width :35.000cm
- Height :29.000cm
- Weight :7.000kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description

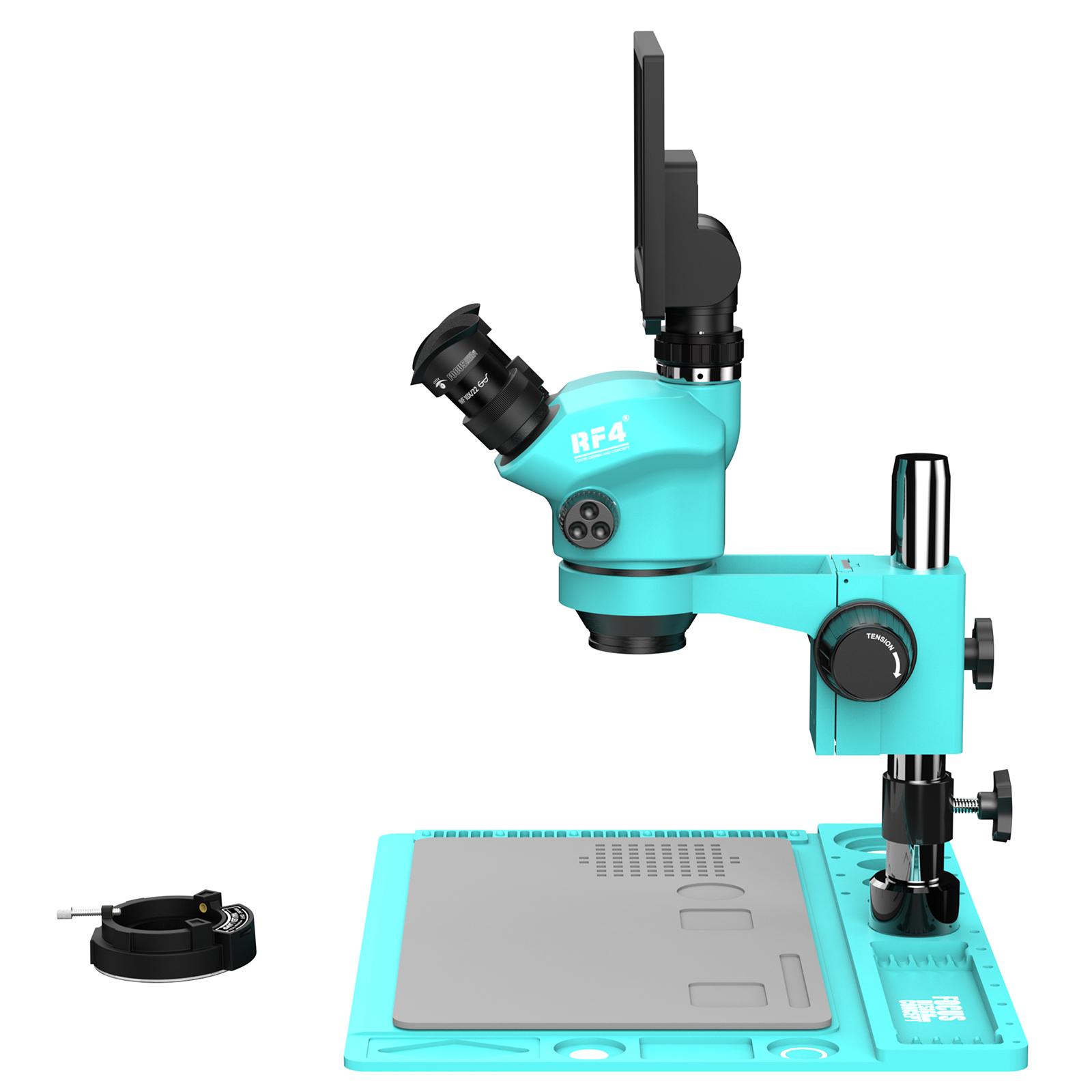

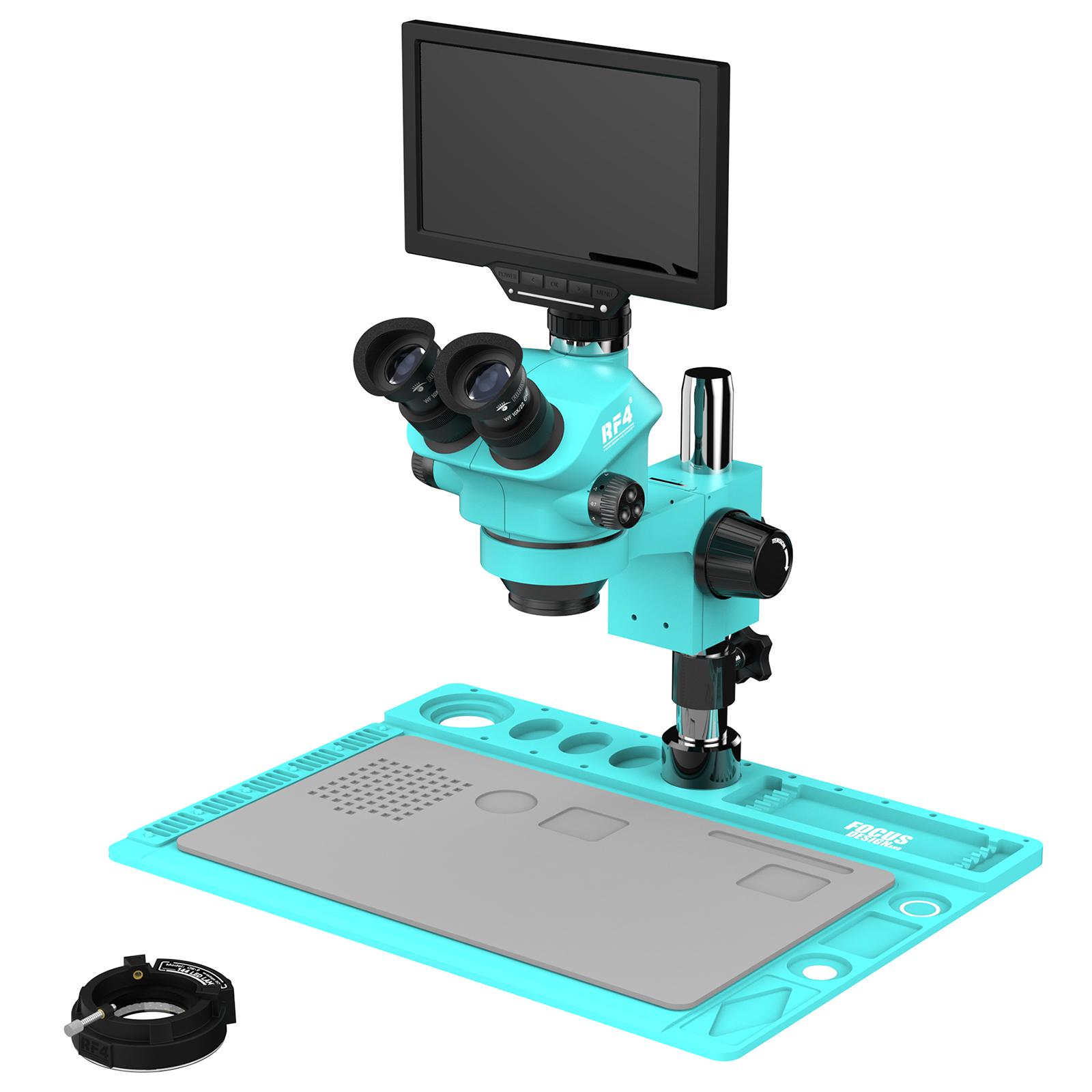

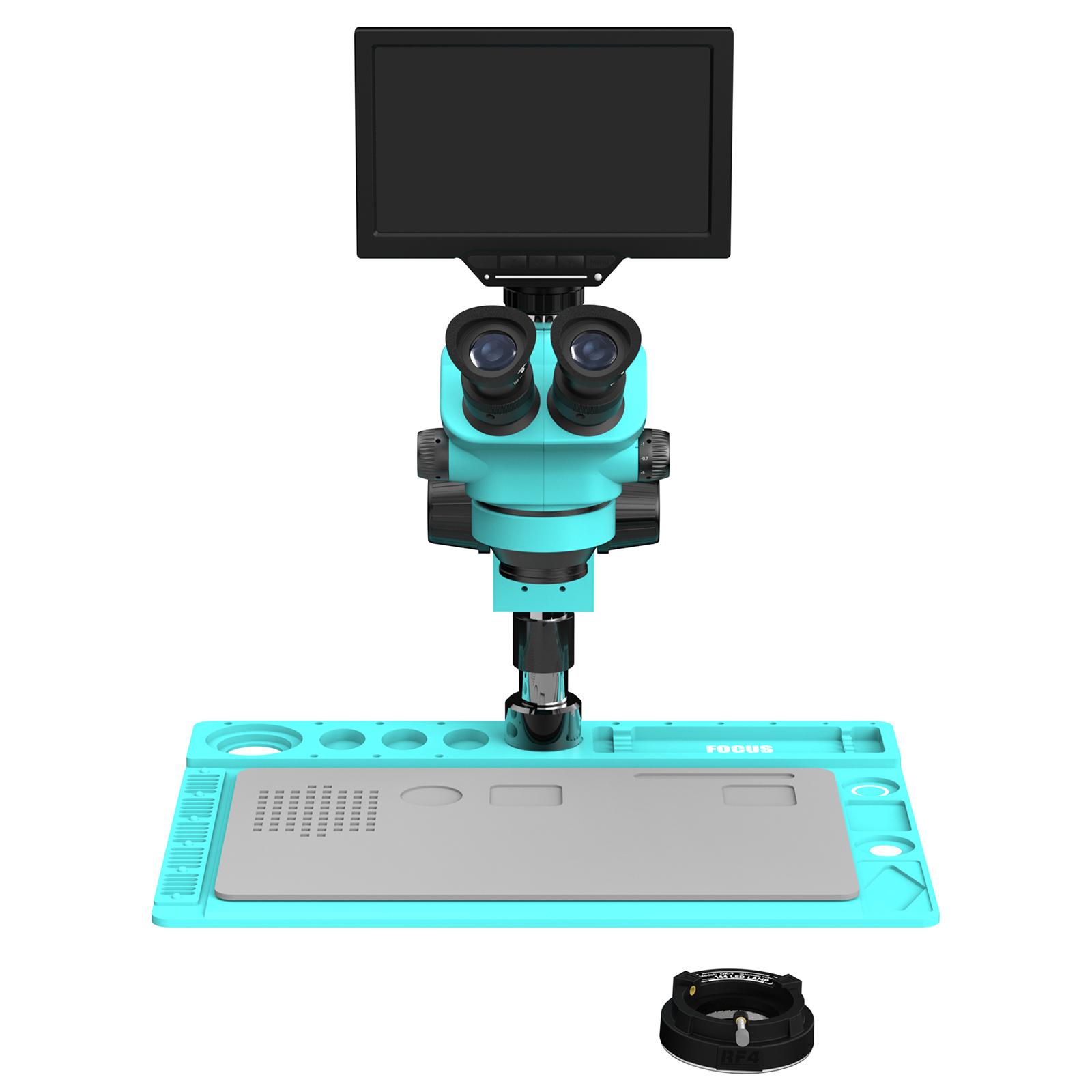

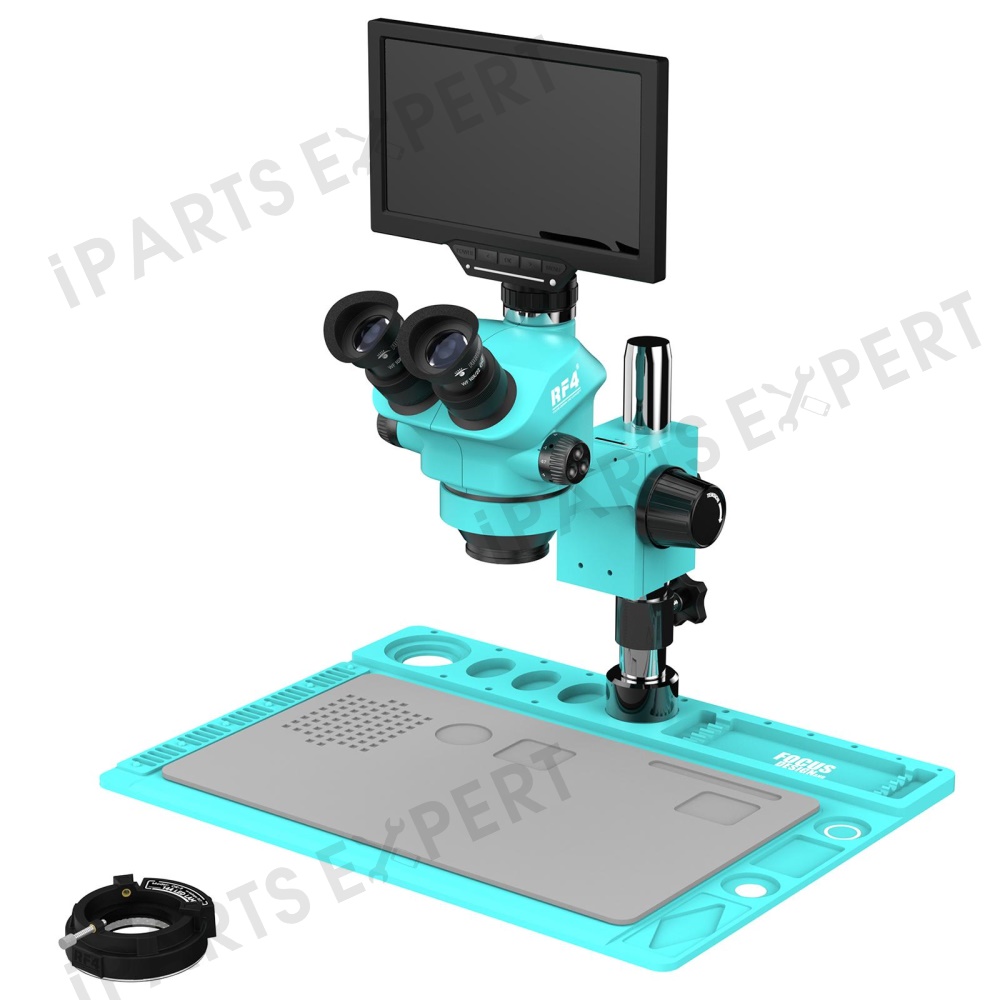

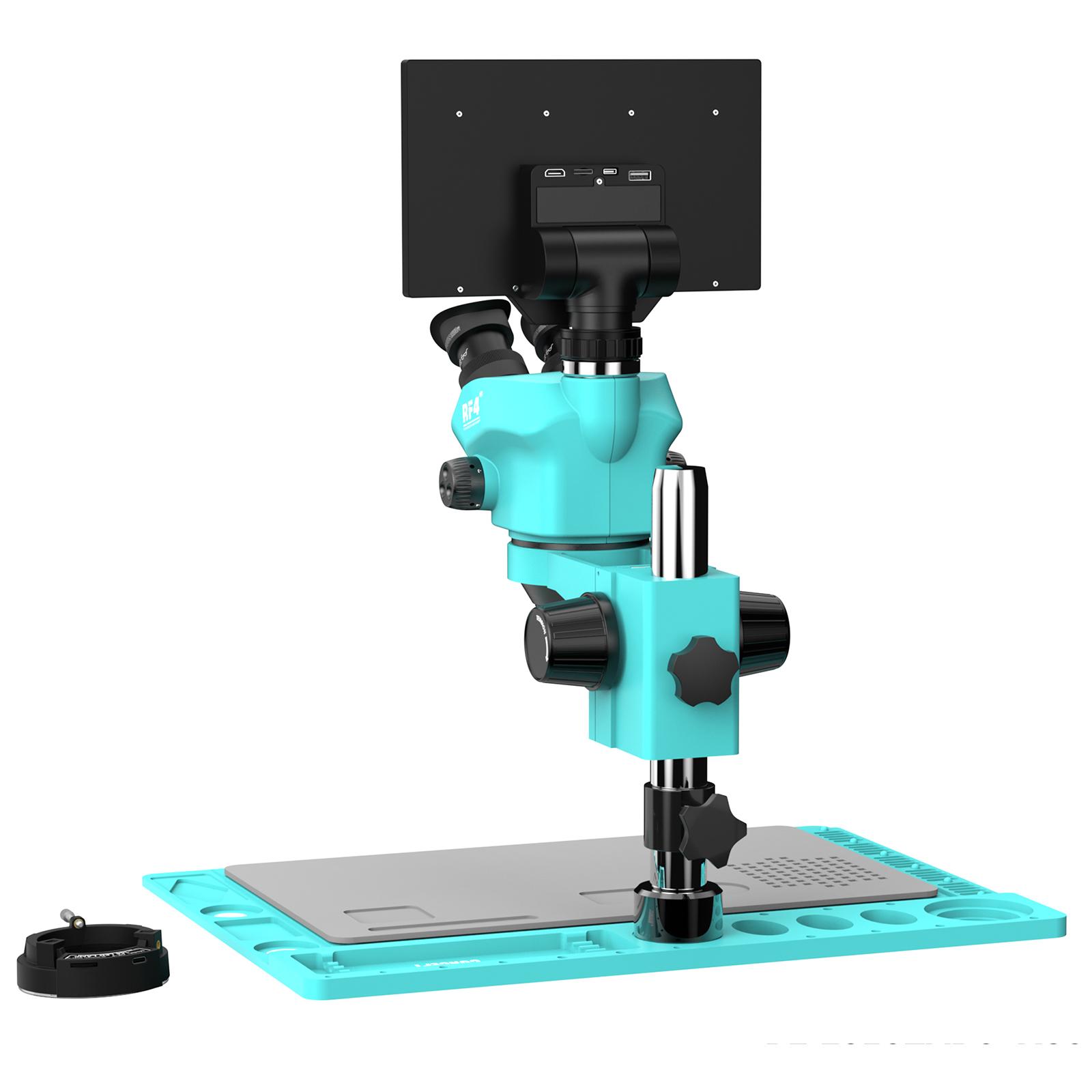

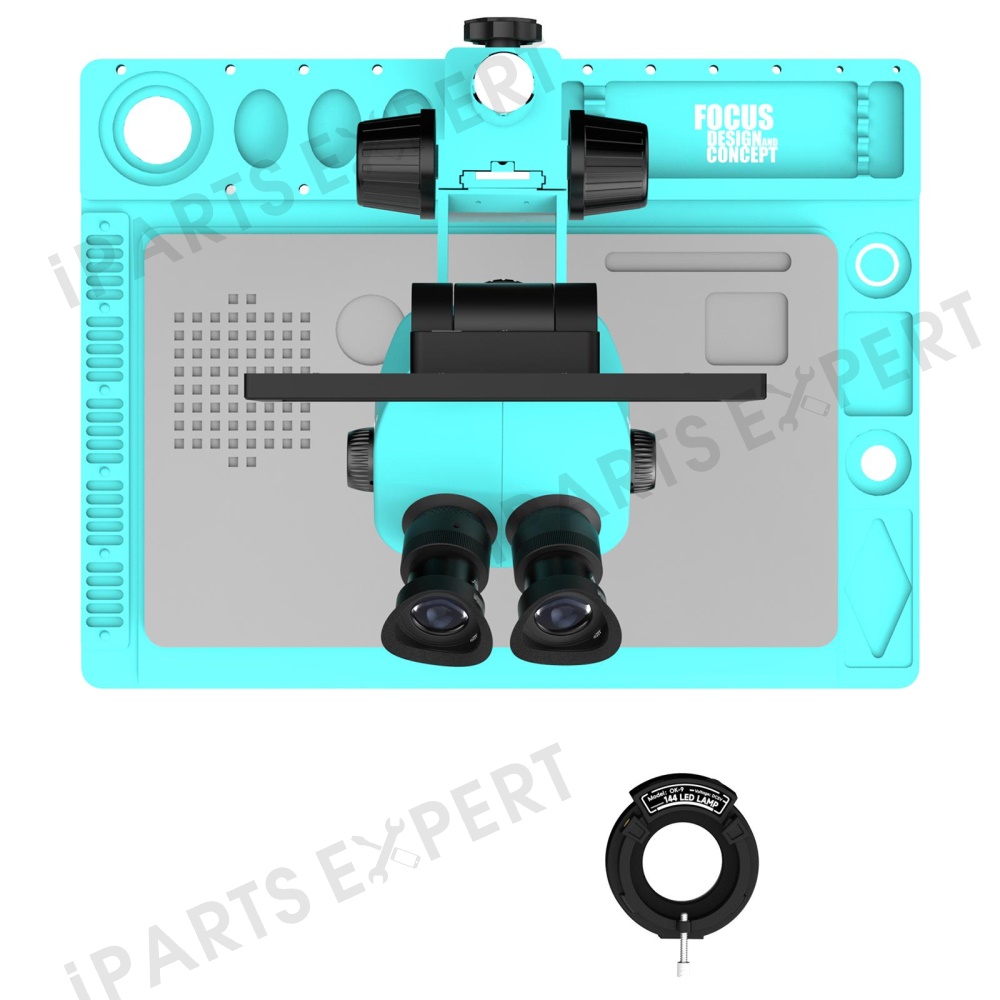

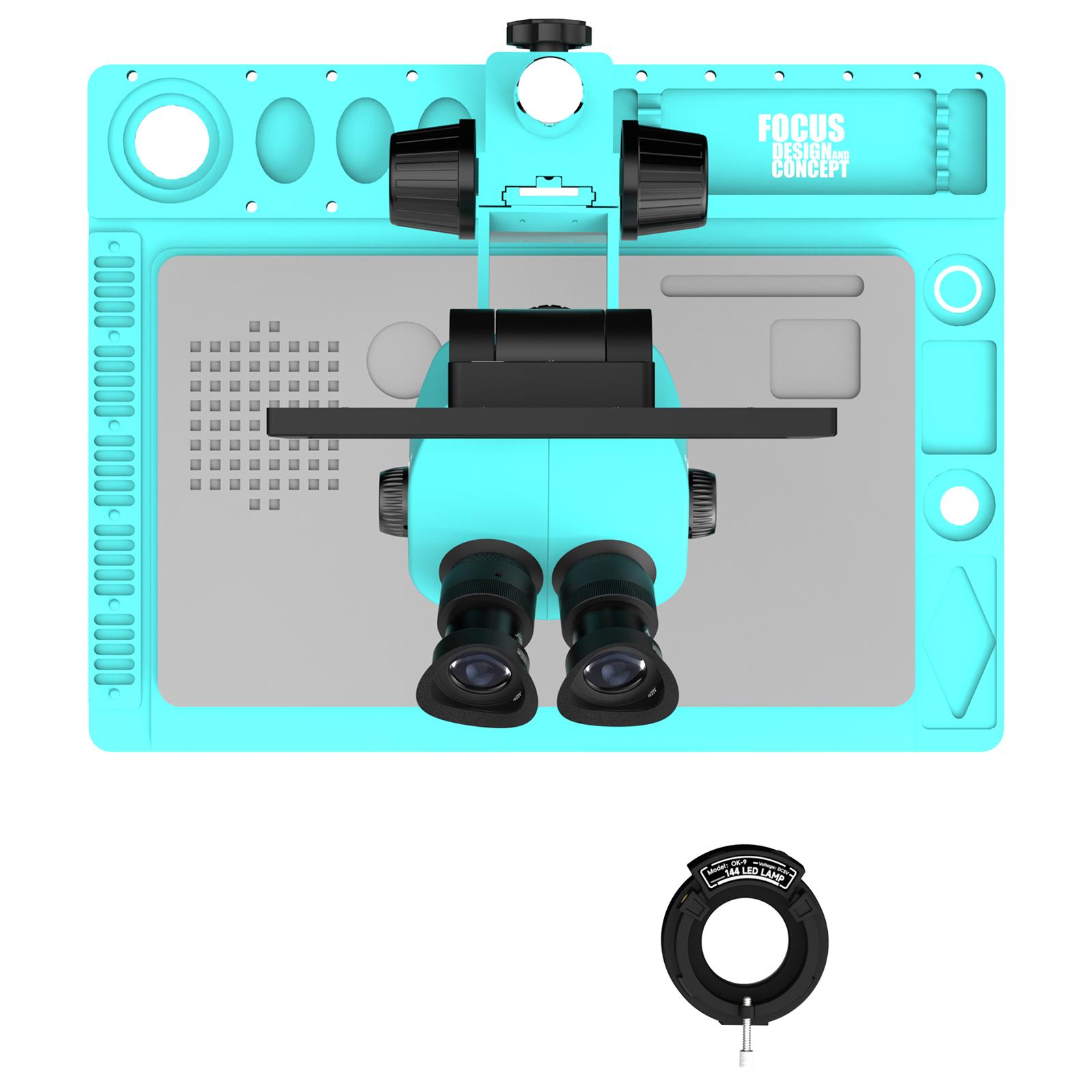

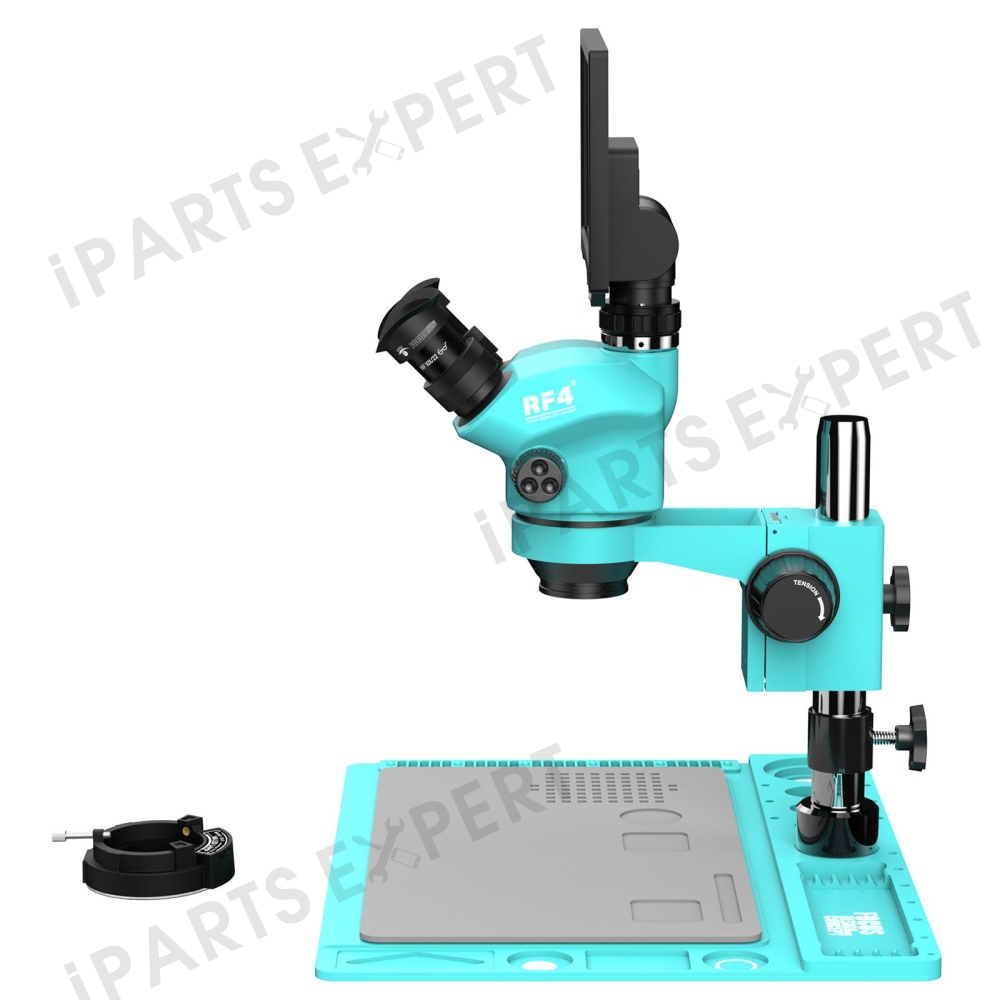

RF4 RF7050TVD2-YS010W 7-50X Synchronized Zoom Trinocular Microscope with 10 inch 1080P HD Monitor
- 【Trinocular Viewing System】The 45° inclined and 360° rotatable trinocular head allows simultaneous observation through both eyepieces and the integrated HD display for efficient workflow.
- 【10 inch HD Monitor】Features a 10 inch IPS display with 1280 x 800 resolution, 400cd/m2 brightness, and 1300:1 contrast ratio for clear and detailed image viewing.
- 【7X-50X Continuous Zoom】Delivers a wide magnification range from 7.0X to 50X with continuous zoom capability, enabling precise adjustment for various detailed inspection and repair tasks.
- 【144 LED Ring Light】Equipped with a 144-LED ring light offering adjustable brightness to provide uniform and shadow-free illumination for small component observation.
- 【Sturdy Aluminum Alloy Base】Built on a 410 x 300mm aluminum alloy base plate with a 240mm x 32mm pillar, ensuring stable support for precision repair and assembly work.
Specifications:
- Magnification: 7.0X to 50X (Continuous Zoom)
- Eyepiece: WF10X/22MM (with Diopter Adjustment)
- Objective: 0.70~5.0X
- Trinocular Head: 45° Inclined, 360° Rotatable
- Camera Interface: 1/2CTV
- BASE:
- Base Size: 410 x 300mm
- Pillar: 240mm x 32mm
- Silicone Pad Size: 330 x 198mm
- DISPLAY:
- Display Model: YS101W
- Display Resolution: 1080P
- Display Size: 10 Inch
- Display Aspect Ratio: 16:10
- IPS Resolution: 1280 x 800
- Output Port: HD
- Panel Brightness: 400cd/m2
- Contrast Ratio: 1300:1 (Min) (Transmissive)
- Viewing Angle: IPS Full Viewing Angle
- Display Area: 215 x 121mm
- WiFi Transmission Distance: 10m
- Display Mode: IPS, Normally Black, Transmissive
- Wide-angle Eyepiece 10X/22:
- Magnification: 10X
- Wide Field of View: 22 mm
- Mounting Diameter: 30 mm
- Compatible Models: Stereo microscopes, fixed-magnification microscopes and continuously variable-magnification microscopes
- 0.5X CTV Adapter:
- Made entirely of metal; the black sections are aluminium alloy, whilst the silver sections are chrome-plated copper mounts.
- This adapter ring supports focusing via the LCD screen (i.e. manual focus).
- The adapter ring is fitted with an internal lens to assist in synchronising the zoom between the microscope’s main display and another display device.
Package included:
- 1 x Microscope
- 1 x Aluminum Alloy Base Plate
- 1 x 144 LED Ring Light
- 1 x Silicone Pad
- 1 x Dust-Proof Lens
- 1 x 0.5X CTV Adapter
- 1 x HD Monitor
