POWER-Z KM003C USB-C PD Tester Power Meter PD3.1 240W Protocol Analyzer with LCD Display
Rate: ( 0 reviews ) views: 62
Item No.: 6616001888A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 5+ units | 10+ units | 20+ units | 50+ units |
| $73.98 | $73.39 | $72.19 | $71.59 | $70.99 | $70.40 |
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Color :As Shown
- Gross Weight :0.090kg
- Volume Weight :0.090kg
- Length :10.000cm
- Width :8.000cm
- Height :5.000cm
- Weight :0.080kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :190
- With Retail Packaging :No
Product Description

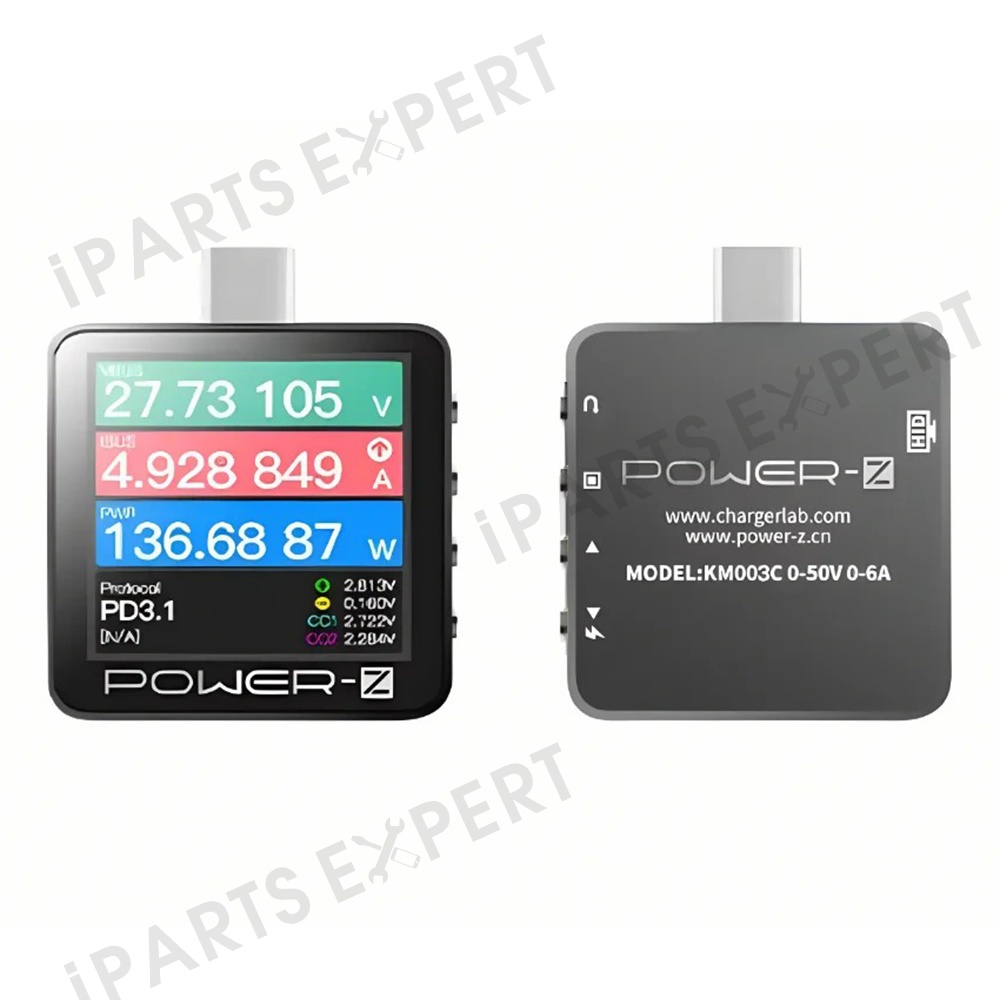

POWER-Z KM003C USB-C PD Tester Power Meter PD3.1 240W Protocol Analyzer with LCD Display
-

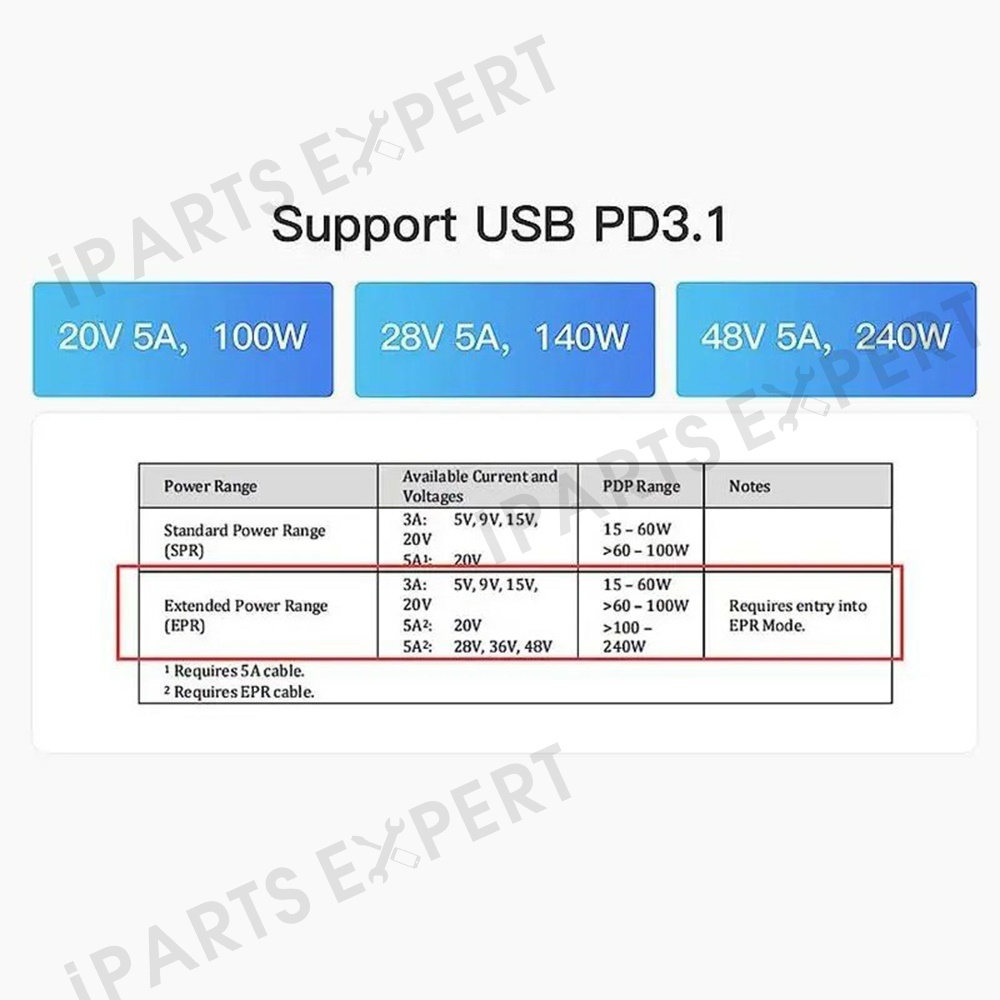

【USB PD3.1 Protocol Support】Advanced support for USB PD3.1 protocol including EPR (Extended Power Range) up to 240W for comprehensive fast charging analysis.
-
【1.54 Inch LCD Display】Features a high-contrast 1.54 inch LCD screen with gravity rotation support for easy viewing from any angle.
-

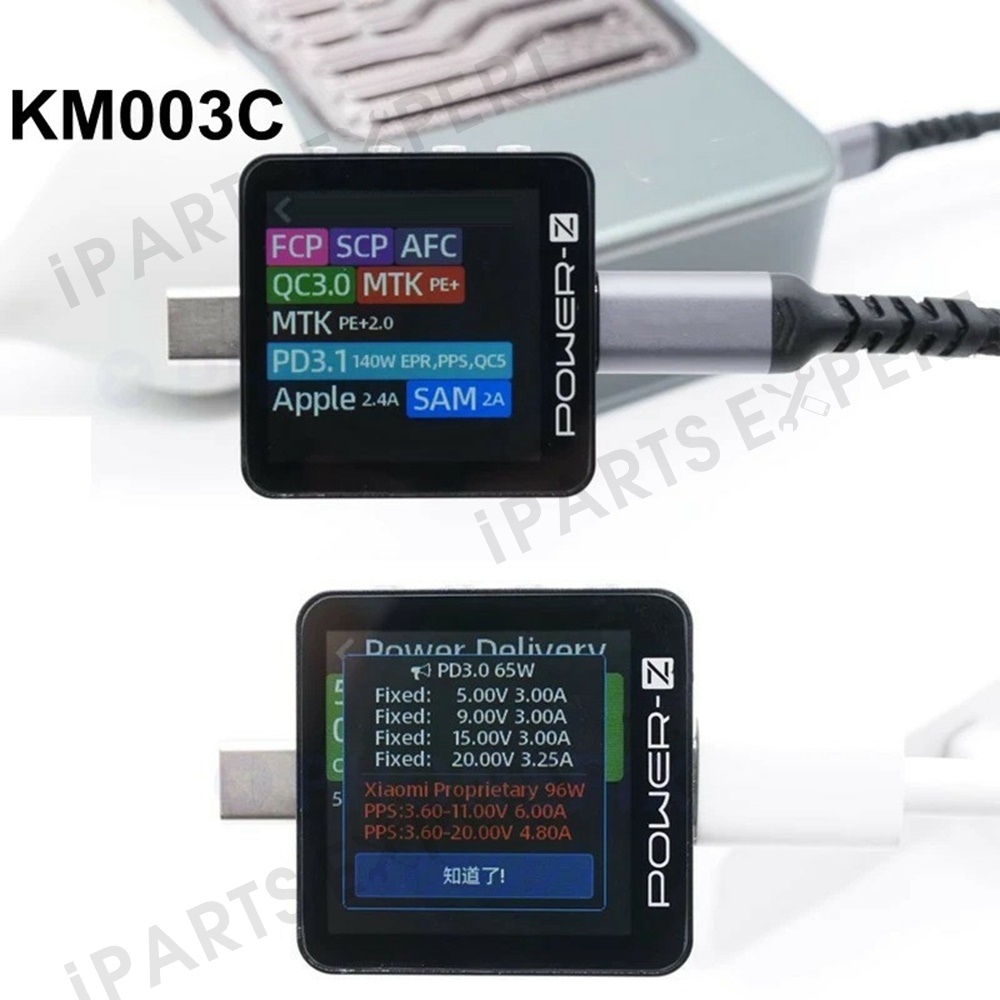

【Multi-Protocol Detection】Supports extensive protocol testing including FCP, SCP, AFC, QC3.0, MTK PE+, PD3.1, Apple 2.4A, and Samsung 2A for universal compatibility.
-
【ARM Cortex-M4 Processor】Integrated with ARM Cortex-M4 processor and 20-bit ADC for precise measurements up to 50V 6A with 240W power output capability.
-
【Real-Time Data Analysis】Provides voltage, current, power measurement with PDO testing, E-marker testing, and capacity/energy analysis for comprehensive charging evaluation.
Specifications:
- Model: KM003C
- Processor: ARM Cortex-M4
- ADC Resolution: 20-bit
- Voltage Range: 0-50V
- Current Range: 0-6A
- Maximum Power: 240W (PD Mode)
- Display: 1.54 inch LCD with Gravity Rotation

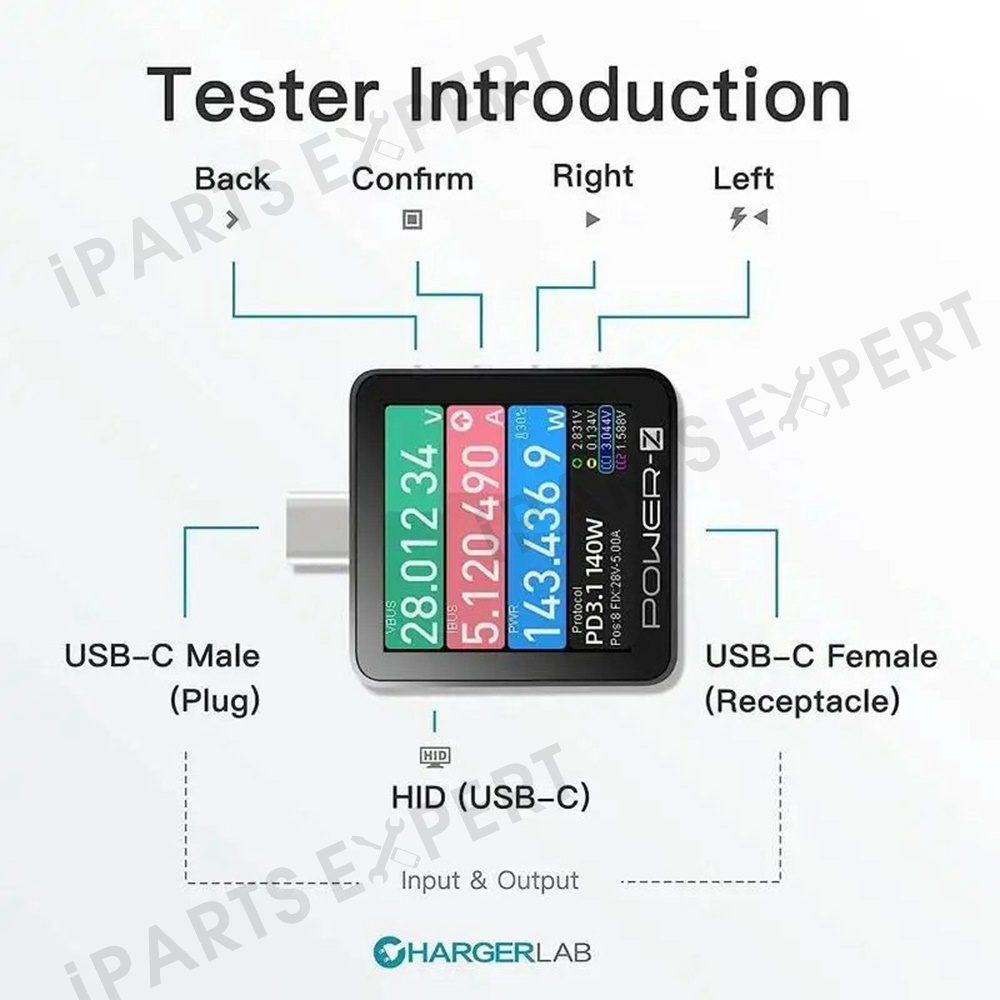

- Input Interface: USB-C Male (Plug)
- Output Interface: USB-C Female (Receptacle)
- HID Interface: USB-C (for PC Connection)
- Navigation Controls: 4-way Keys (Back, Confirm, Right, Left)

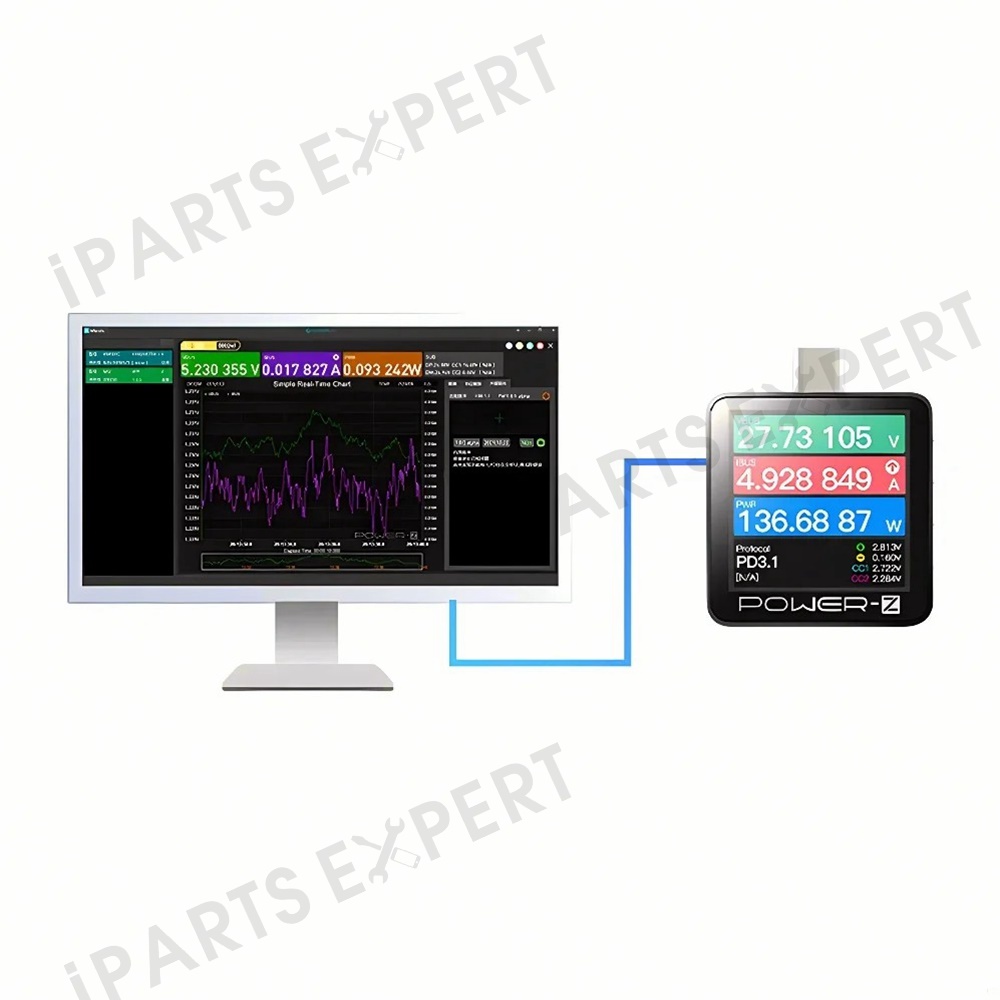

- Data Collection: Up to 10 million data points via PC software
Package included:
- 1 x POWER-Z KM003C PD USB-C Fast Charging Tester
