I2C C09 Digital Waveform Ammeter Dual Channel 40V Current Voltage Meter Multimeter Expansion Board
Rate: ( 0 reviews ) views: 62
Item No.: 6616001884A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 10+ units | 20+ units | 50+ units | 100+ units |
| $57.46 | $57.01 | $56.09 | $55.64 | $54.72 | $54.27 |
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :N/A
- Color :As Shown
- Gross Weight :0.392kg
- Volume Weight :0.448kg
- Length :20.000cm
- Width :20.000cm
- Height :5.000cm
- Weight :0.350kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :20
- With Retail Packaging :No
Product Description

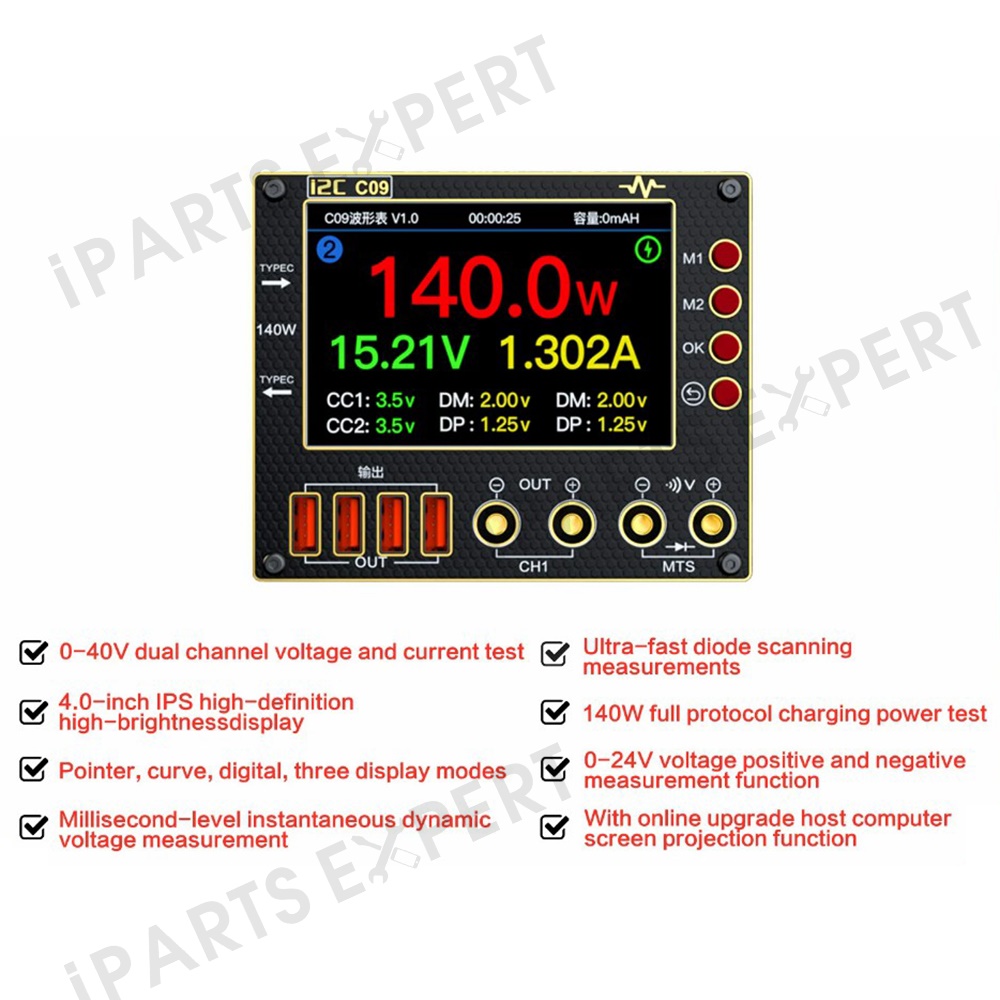

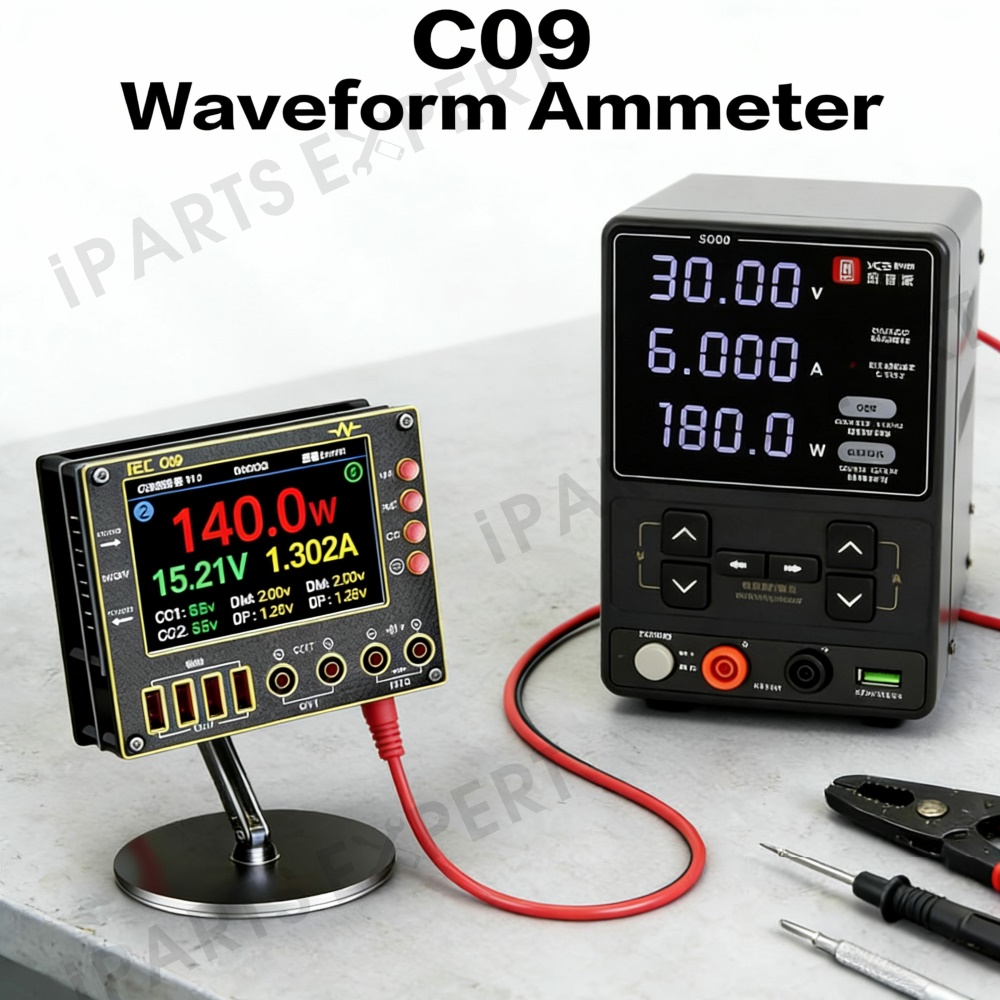

I2C C09 Digital Waveform Ammeter Dual Channel 40V Current Voltage Meter Multimeter Expansion Board
-
【8-in-1 Multi-Function Tester】Integrates voltage meter, current meter, power meter, waveform analyzer, and charging tester in one device for comprehensive electronic testing.
-

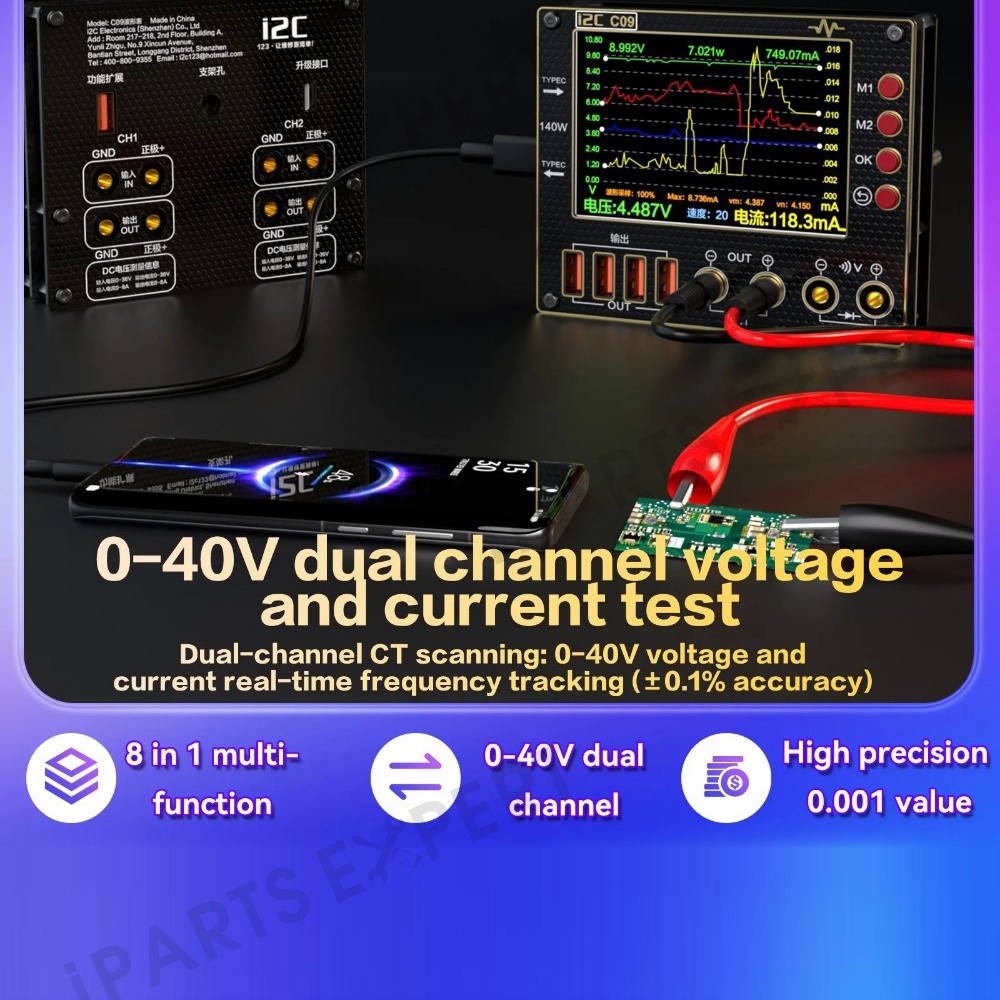

【Dual Channel 0-40V Testing】Simultaneous dual-channel voltage and current measurement with independent CH1 and CH2 channels for versatile testing scenarios.
-
【4.0 Inch IPS HD Display】High-brightness IPS screen with 320x480 resolution provides clear visibility with three display modes: pointer, curve, and digital.
-

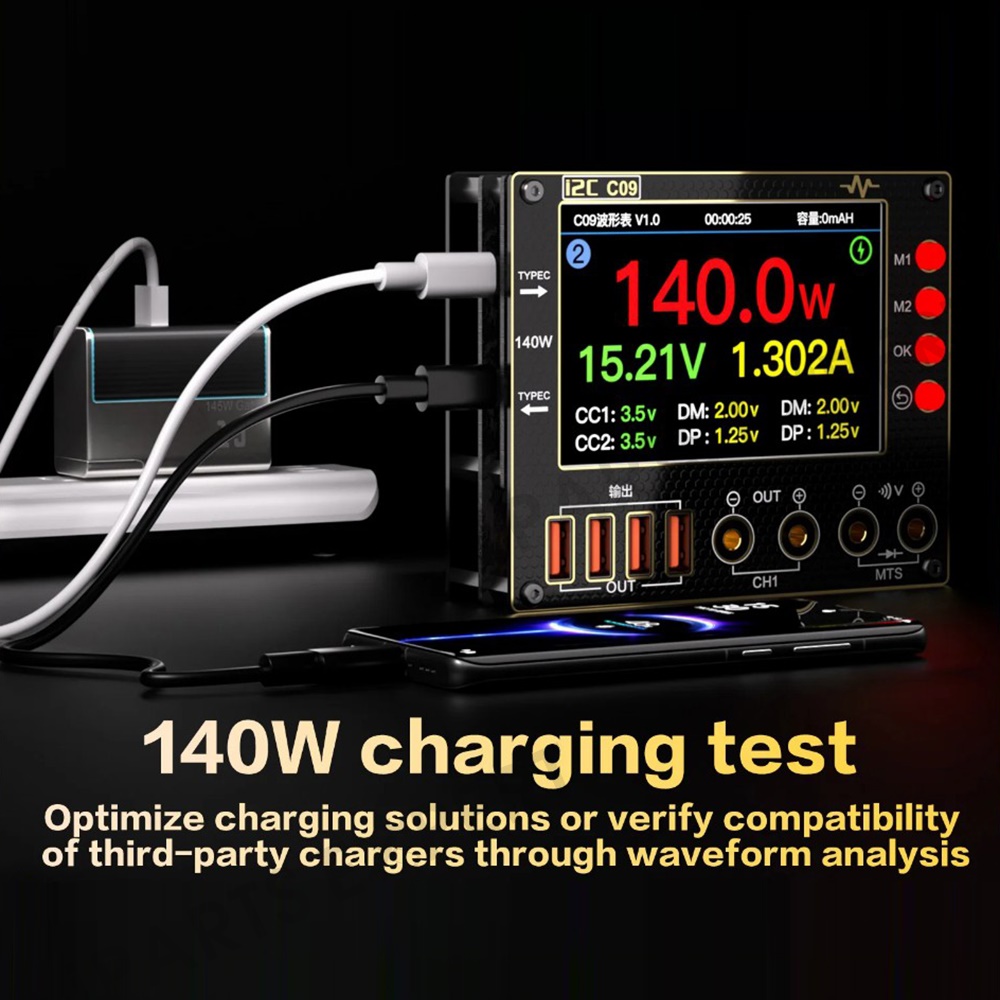

【140W Fast Charging Protocol Test】Supports comprehensive fast charging protocol testing with real-time power monitoring up to 140W capacity.
-
【Millisecond Dynamic Measurement】Ultra-fast millisecond-level instantaneous dynamic voltage measurement with 0.001 precision value for accurate readings.
Specifications:
- Input Voltage Range: DC 0-40V
- Power Supply: 5V/2A
- Diode Test Range: 0-2.8V
- Resistance Range: 0-50KΩ
- Voltage Measurement: 0-24V
- Dual Channel Voltage: 0-40V
- Current Detection: 0-8A
- Protection Voltage: <60V
- Protection Current: <15A
- Banana Plug Output: 40V/8A
- USB Output: 20V/2A
- Voltage Resolution: 1mV
- Current Resolution: 0.1mA
- Current Accuracy: 100A
- Screen Size: 4.0 inch
- Screen Resolution: 320 x 480
- Product Dimensions: 11.4 x 9.3 x 2.9cm
- Display Type: IPS High Brightness
- Measurement Precision: 0.001
- Frequency Tracking Accuracy: ±0.1%
- Power Testing: 140W Full Protocol
- Display Modes: Pointer, Curve, Digital

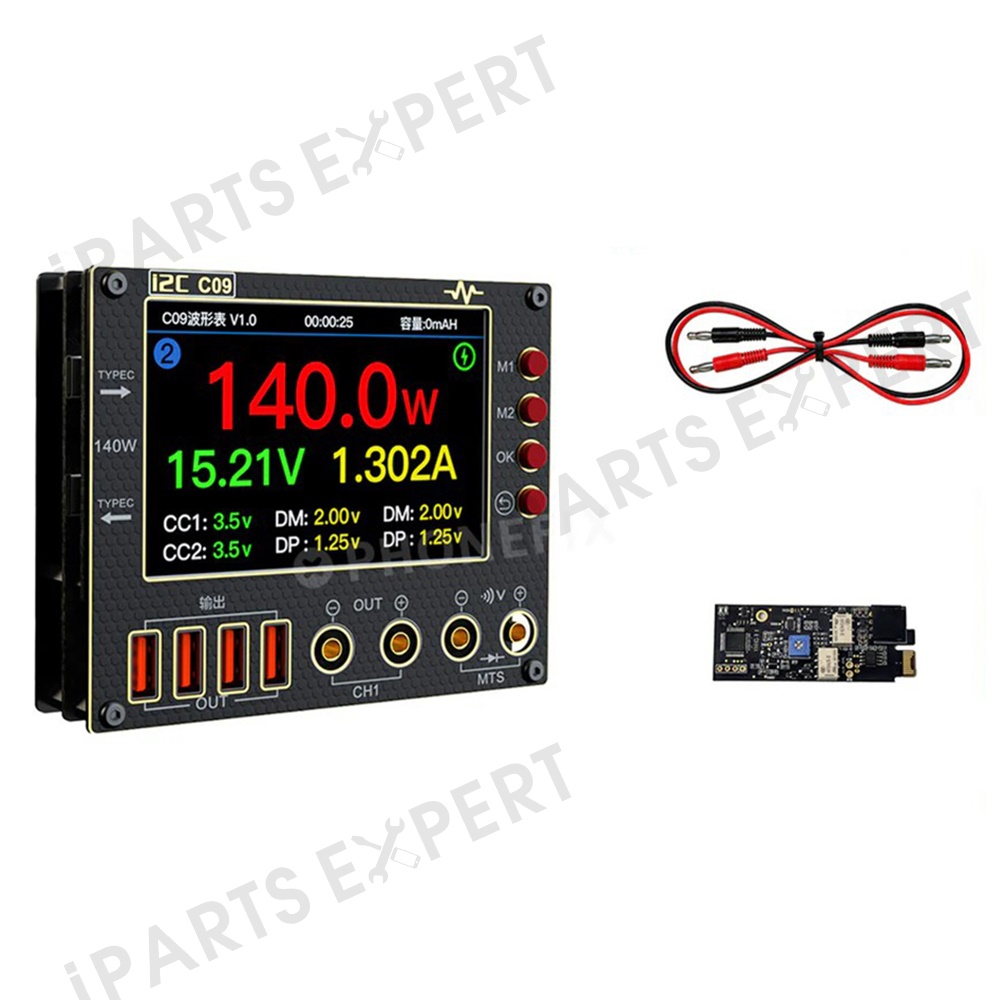

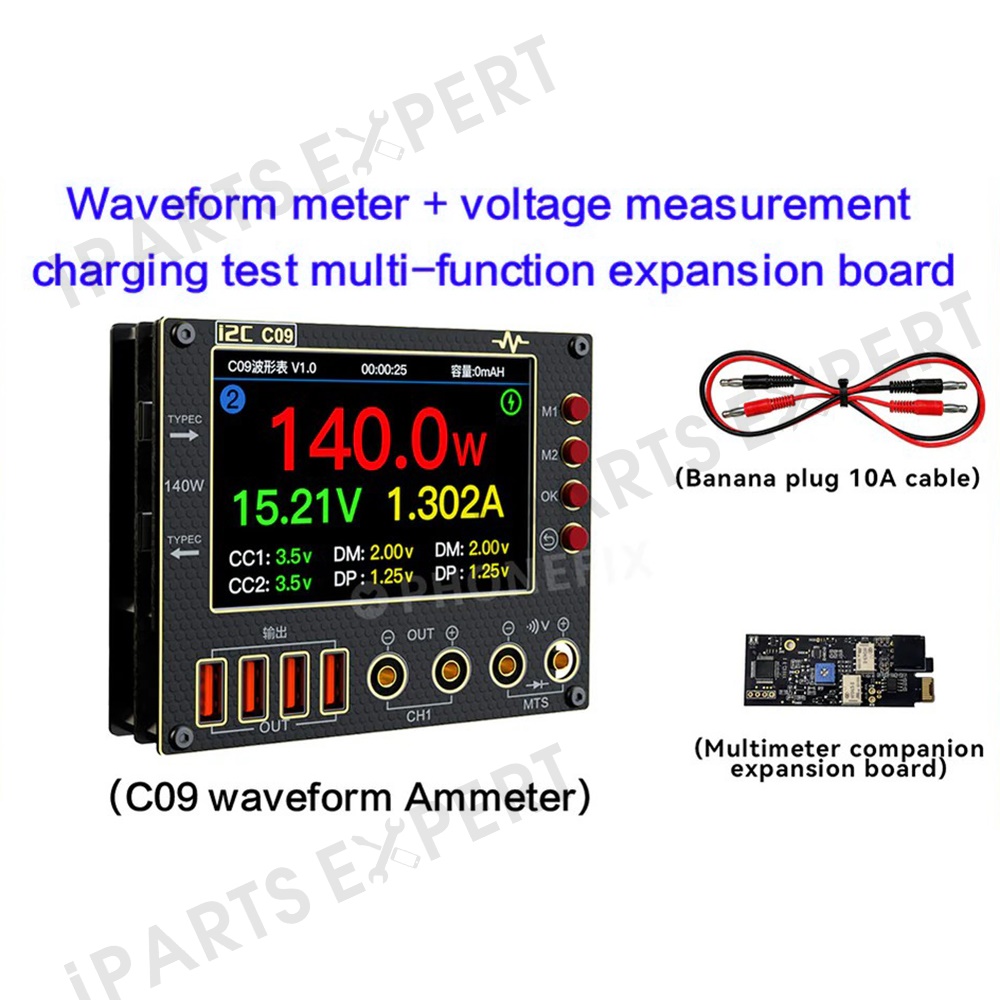

Package included:
- 1 x Waveform Ammeter
- 1 x Extension Board
- 1 x USB Cable
