SUNSHINE H3 210 Smart Soldering Station Rapid Heating Automatic Sleep PCB Chip Repair Soldering Machine - EU Plug
Rate: ( 0 reviews ) views: 62
Item No.: 6616001450A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 5+ units | 10+ units | 20+ units | 50+ units |
| $65.84 | $65.32 | $64.26 | $63.17 | $62.66 | $62.12 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Gross Weight :2.475kg
- Volume Weight :1.194kg
- Length :19.000cm
- Width :17.000cm
- Height :16.500cm
- Weight :2.210kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :34.000cm
- PackageQuantity :9
- With Retail Packaging :No
Product Description
SUNSHINE H3 210 Smart Soldering Station Rapid Heating Automatic Sleep PCB Chip Repair Soldering Machine - EU Plug

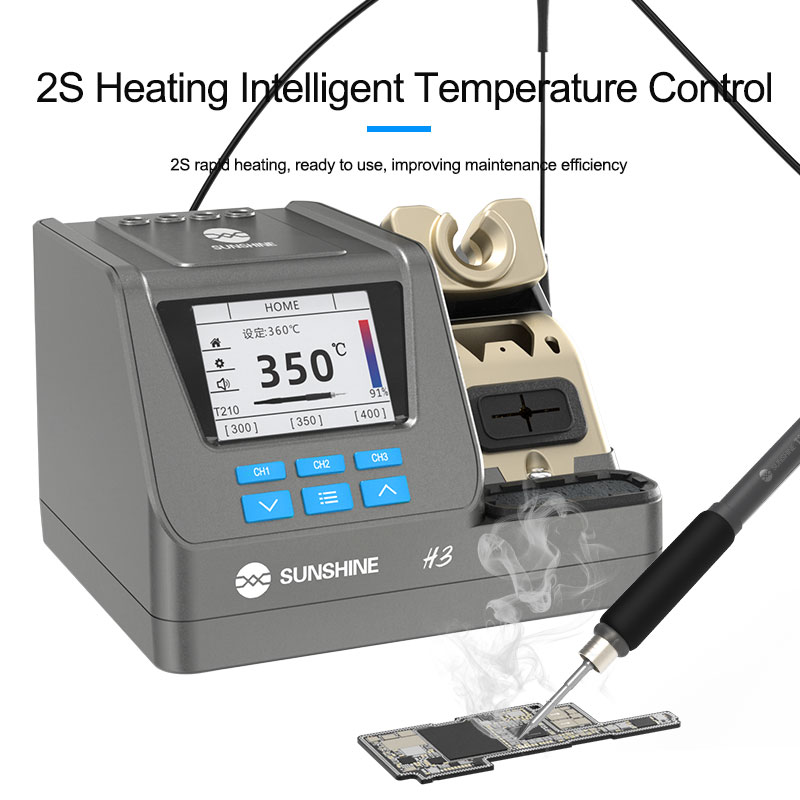

- 【Rapid Heating Technology】2S quick heating system ensures the soldering station is ready to use instantly, significantly improving maintenance efficiency.

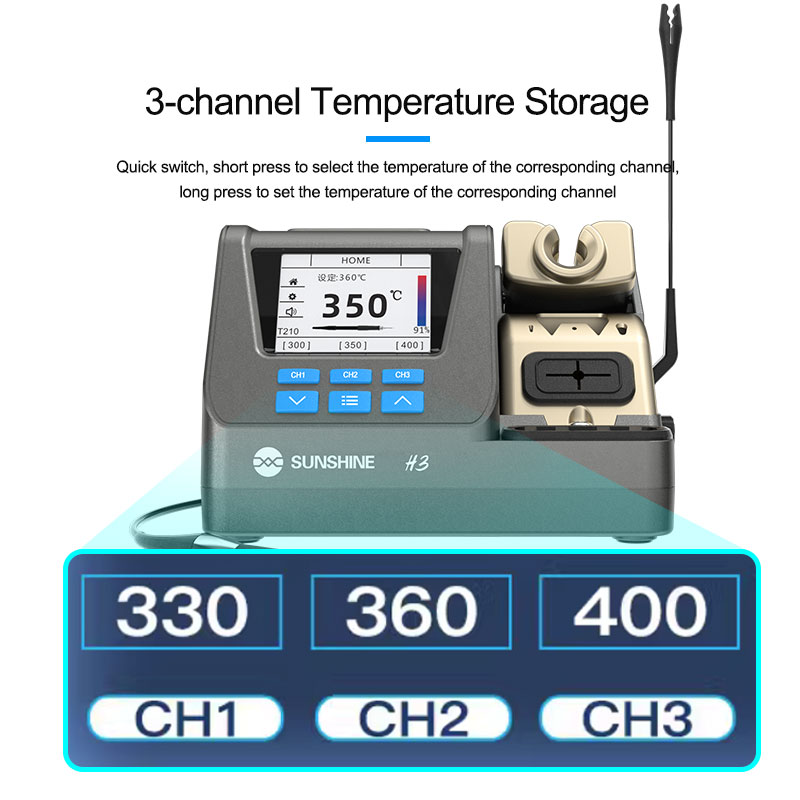

- 【3-Channel Temperature Storage】Easily switch between three preset temperature channels with a short press, or long-press to set custom temperatures for each channel.
- 【Automatic Sleep Function】Intelligent induction system automatically puts the soldering iron to sleep when placed on the holder, extending the lifespan of the soldering tip.
- 【Versatile Compatibility】Supports T115, T210, and T245 handles, offering stronger compatibility for various soldering tasks.
- 【Wide Application Range】Suitable for chip-level repairs, PCB manufacturing, mobile phone motherboard flying lead desoldering, and other precision soldering tasks.
- 【Intelligent Temperature Control】Features temperature compensation to maintain consistent heat for precise soldering operations.
Specifications:

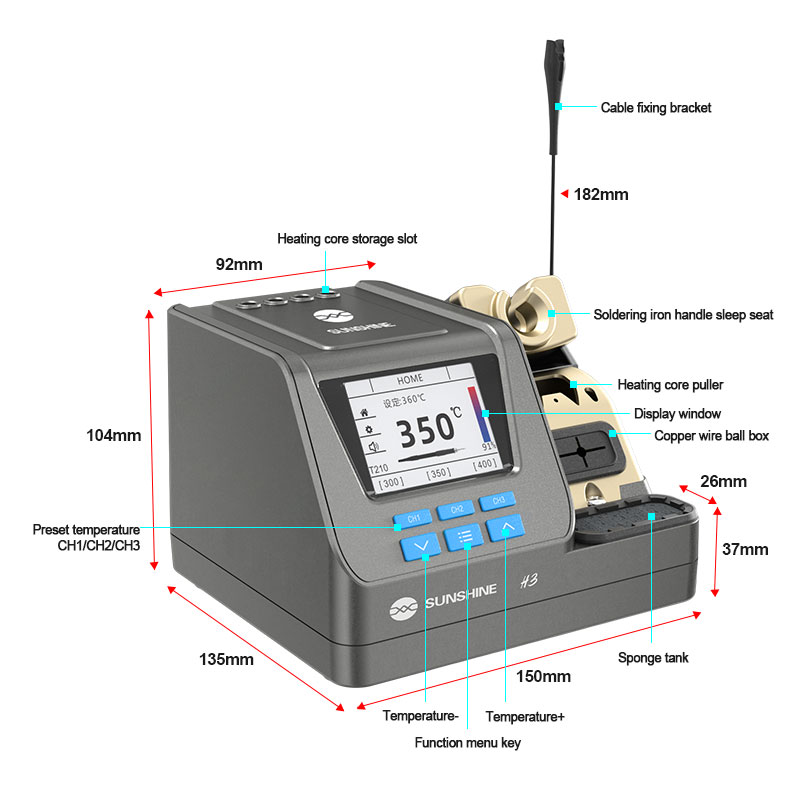

- Host Size: 150x135x104mm
- T210 Handle Wire Total Length: ≈ 126cm
- T210 Heating Core: 80*3.5mm
- Rated Working Voltage: AC220V/110V
- Rated Power: 80W
- Temperature Range: 100-480℃/212-900℉
- Temperature Range Accuracy: ±5℃/40℉
- Temperature Stability: ±1℃/30℉
- Supported Handle Types: 115/210/245
- Temperature Adjustment Step: ±5℃/10℉
- Delayed Sleep: 0-180s, The Delayed Sleep Function Is Canceled By Default

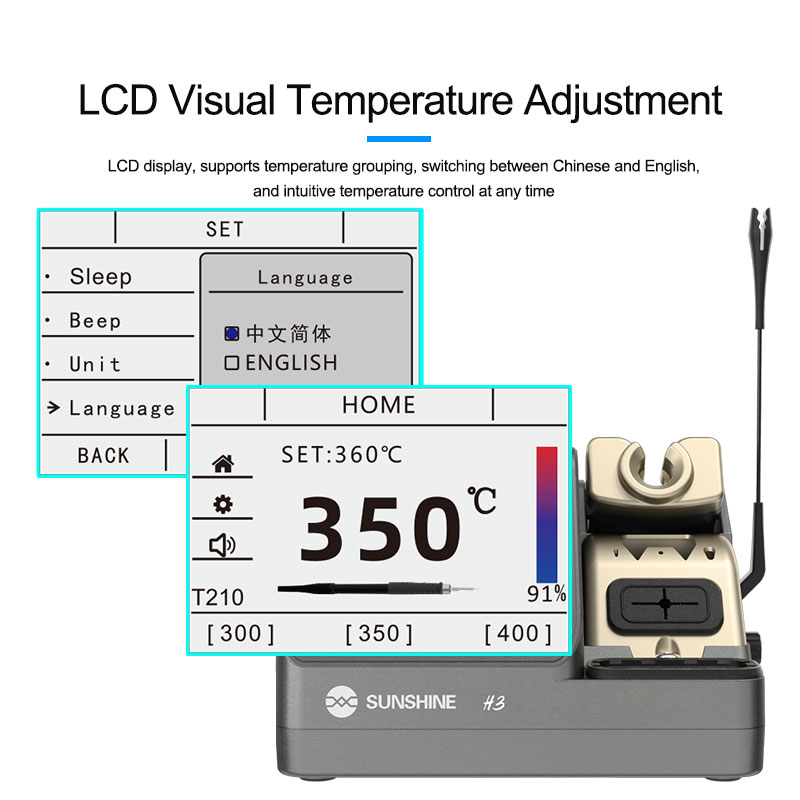

- Display Resolution: 240*320px (LCD Color Screen)
- System Language: Chinese-English Bilingual Switching
Compatible with:
- Universal Models
Package included:
- 1 x Soldering Station Host
- 1 x T210 Heating Core
- 1 x T210 Handle
- 1 x Cleaning Sponge
- 1 x Copper Wire Ball
- 1 x Cable Bracket Hand Screw
- 1 x Cable Bracket
- 1 x Anti-Scalding Silicone Pad
- 1 x Ground Wire
- 1 x Power Cord
- 1 x English Instruction Manual
- 1 x Certificate
