MC007 MiniUSB to Type-C Adapter Board Support Forward Reverse Charging Data Transmission
Rate: ( 0 reviews ) views: 62
Item No.: 6615002021A Ships in 1 - 3 days MOQ: 2
| 1+ units | 3+ units | 20+ units | 40+ units | 100+ units | 200+ units |
| $1.70 | $1.68 | $1.66 | $1.62 | $1.60 | $1.57 |
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :N/A
- Color :As Shown
- Condition :Others
- Parts Type :Others
- Gross Weight :0.022kg
- Volume Weight :0.058kg
- Length :13.000cm
- Width :8.000cm
- Height :2.500cm
- Weight :0.020kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :290
- With Retail Packaging :No
Product Description

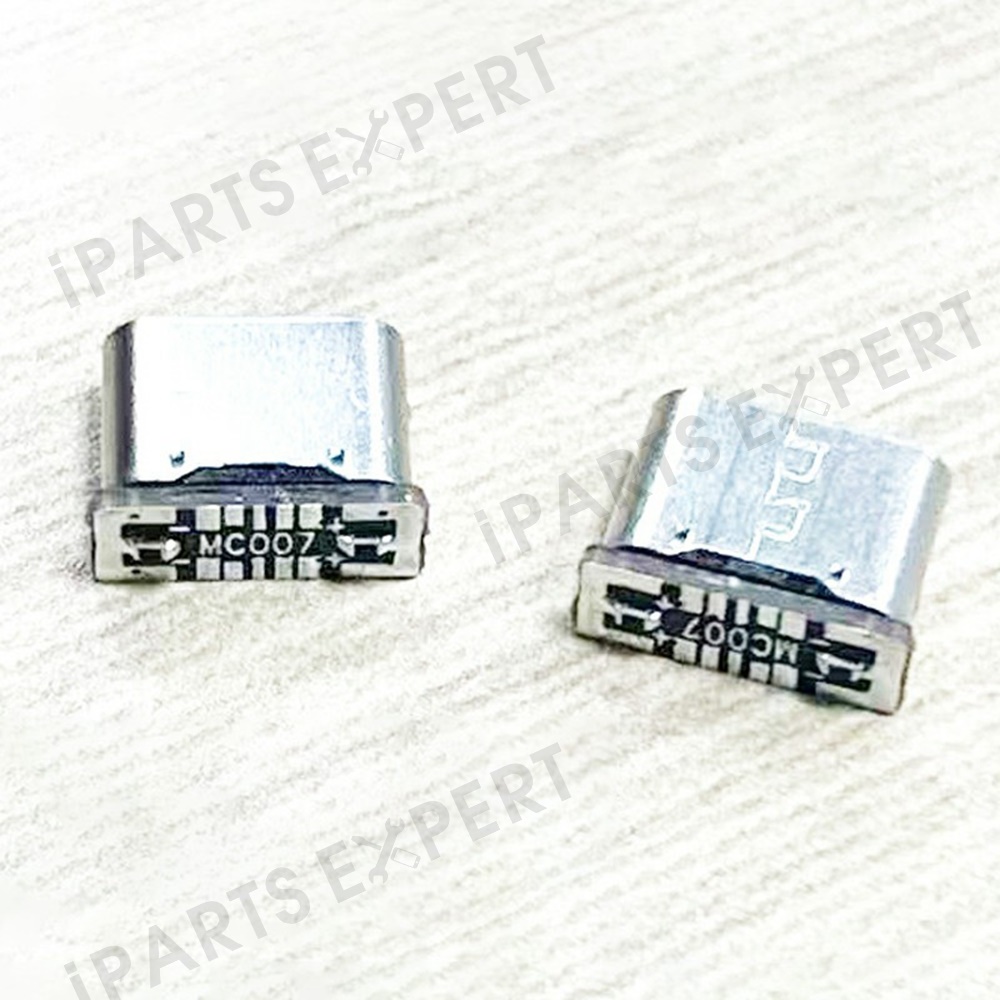

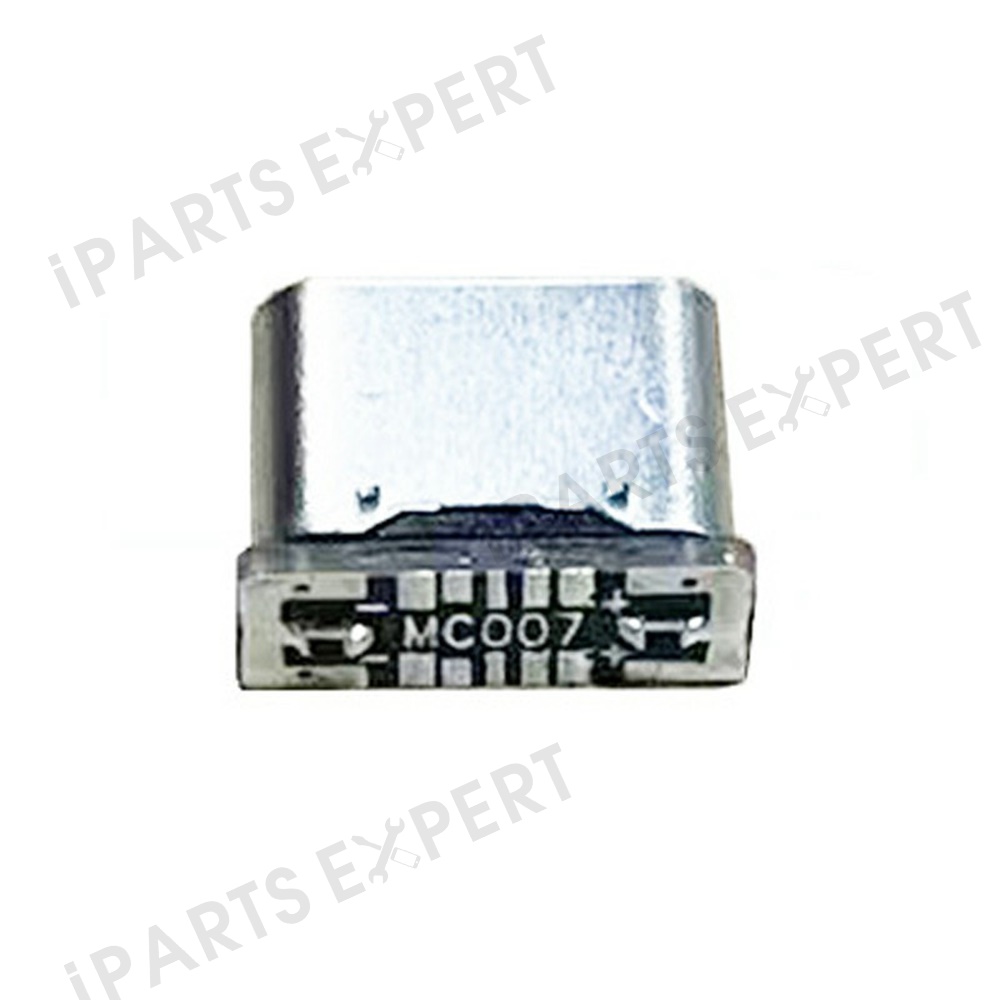

MC007 MiniUSB to Type-C Adapter Board Support Forward Reverse Charging Data Transmission
【MicroUSB to Type-C Upgrade】Transform old electronic devices with MicroUSB or MiniUSB charging ports into modern Type-C interfaces for enhanced connectivity.
【Reversible Type-C Charging】Supports both forward and reverse Type-C plug orientation for convenient charging without worrying about plug direction.
【USB 2.0 Data Transmission】Enables full USB 2.0 data transfer capabilities in both plug orientations, maintaining device functionality beyond just charging.
【OTG Function Support】Built-in ID pin provides OTG (On-The-Go) functionality for expanded device connectivity and peripheral support.
【Dual-Layer Solder Design】Features symmetrical solder pads on both top and bottom layers for secure installation and reliable electrical connections.
Specifications:
- Model: MC007
- Material: Metal shell with nickel/tin plating, FR-4 PCB substrate
- Interface Type: MicroUSB/MiniUSB to Type-C adapter

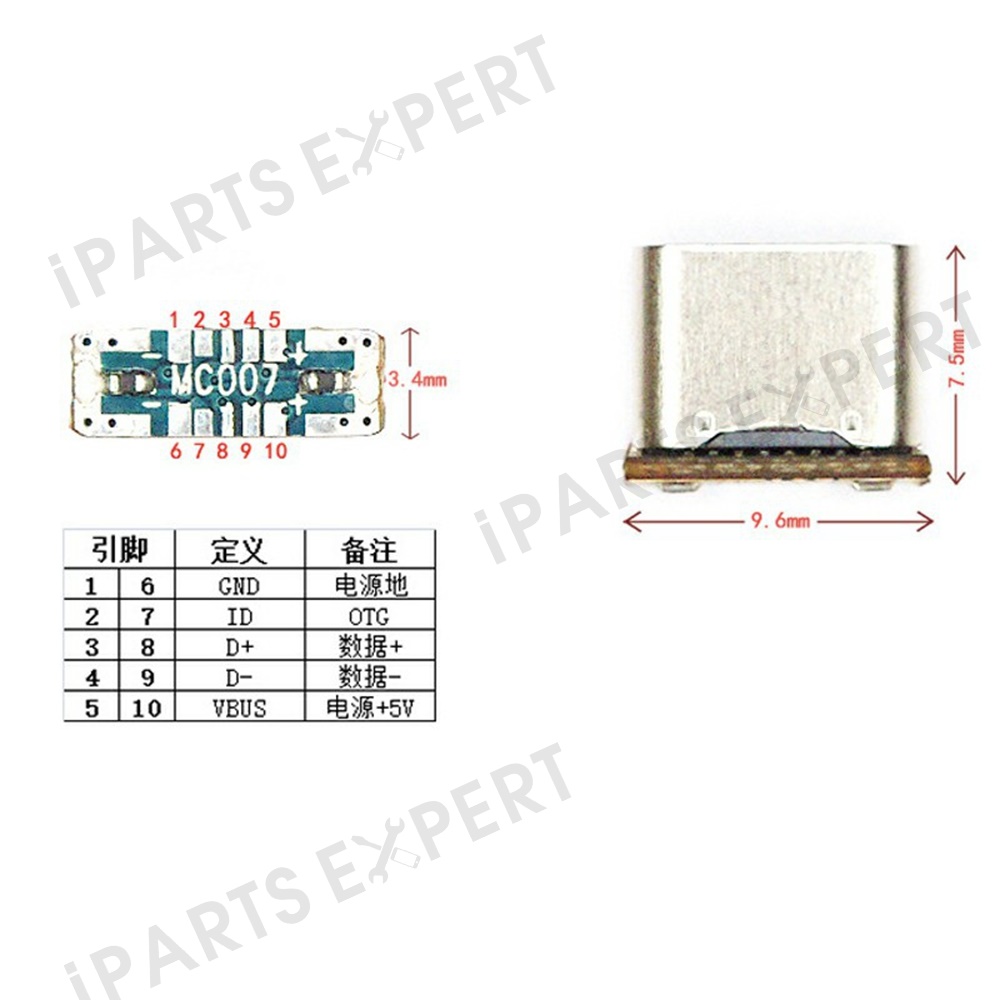

- Product Size: 9.6mm x 7.5mm (Type-C socket), PCB pad area height: 3.4mm
- Pin Configuration: 10-pin dual-row layout (5x2)
- Pin Definition: Pin 1&6: GND, Pin 2&7: ID (OTG), Pin 3&8: D+, Pin 4&9: D-, Pin 5&10: VBUS (+5V)
- Installation Type: Solder-on type (SMT or manual soldering required)
- Data Transfer: USB 2.0 compatible
- Charging Support: Bidirectional Type-C charging
Package included:
- 1 x MicroUSB to Type-C Adapter Board
