C245-939 Soldering Iron Tip for JBC Sugon GVM Aifen Aixun Soldering Station PCB Repair Tool
Rate: ( 0 reviews ) views: 62
Item No.: 6616001885A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 10+ units | 20+ units | 50+ units | 100+ units |
| $30.41 | $30.17 | $29.69 | $29.45 | $28.97 | $28.72 |
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Color :As Shown
- Gross Weight :0.022kg
- Volume Weight :0.003kg
- Length :12.000cm
- Width :1.000cm
- Height :1.000cm
- Weight :0.020kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :800
- With Retail Packaging :No
Product Description
C245-939 Soldering Iron Tip for JBC Sugon GVM Aifen Aixun Soldering Station PCB Repair Tool
-
【Dual-Tip Design】Features both a precision conical tip (0.4mm) for fine soldering and a knife-edge tip for desoldering and solder removal tasks.
-

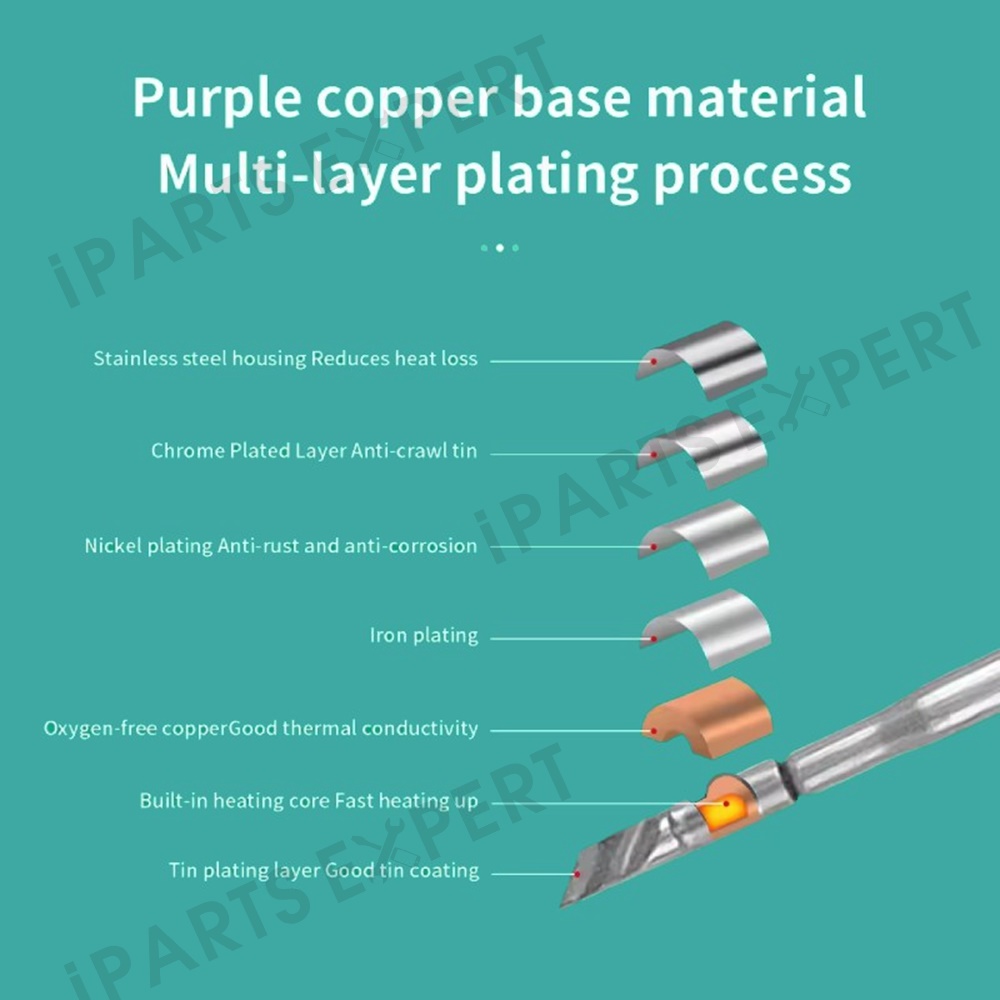

【Multi-Layer Electroplating】Advanced multi-layer coating structure with tin, nickel, chrome, and iron plating layers ensures superior anti-oxidation and extended lifespan.
-
【Rapid Heating Technology】Built-in heating core with oxygen-free copper substrate provides excellent thermal conductivity for quick temperature response.
-
【Wide Temperature Range】Adjustable temperature control from 200℃ to 450℃ accommodates various soldering applications and component requirements.
-
【Plug-In Installation】Simple plug-and-play design allows for quick tip replacement without removing the soldering iron handle.

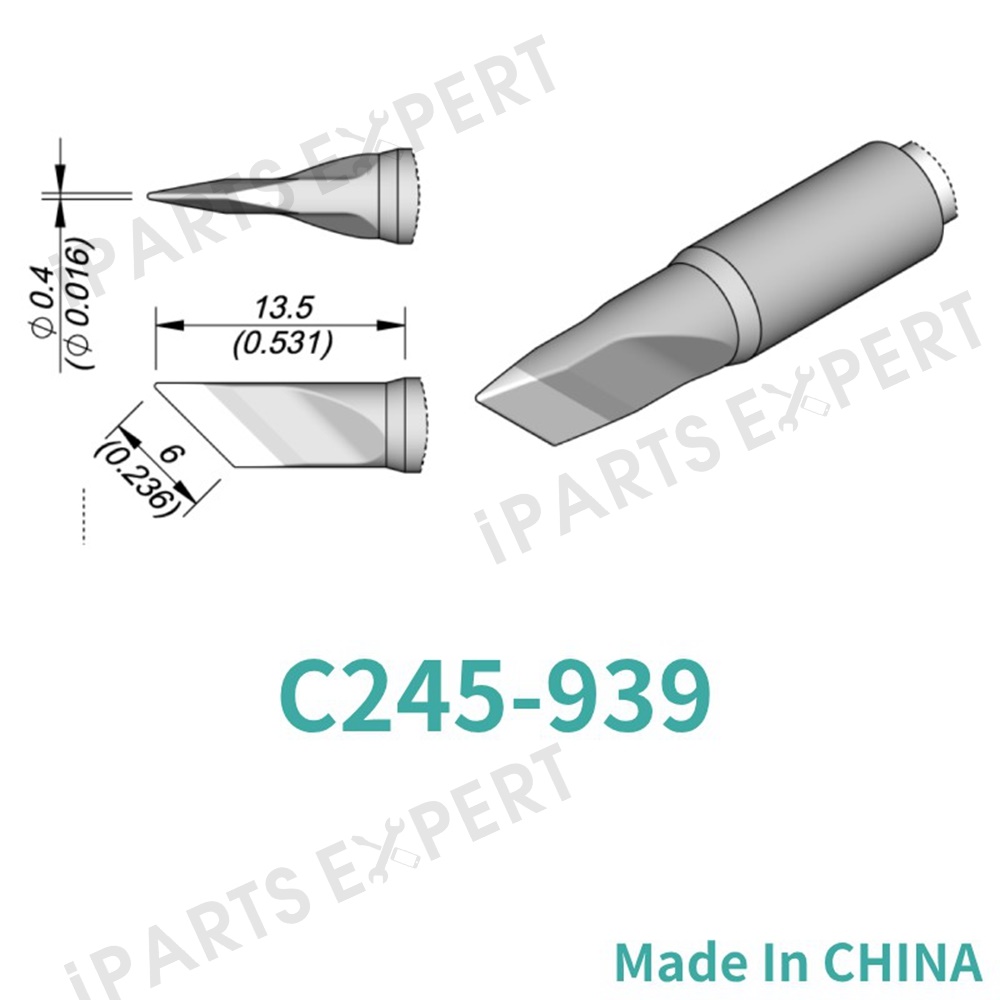

Specifications:
- Model: C245-939

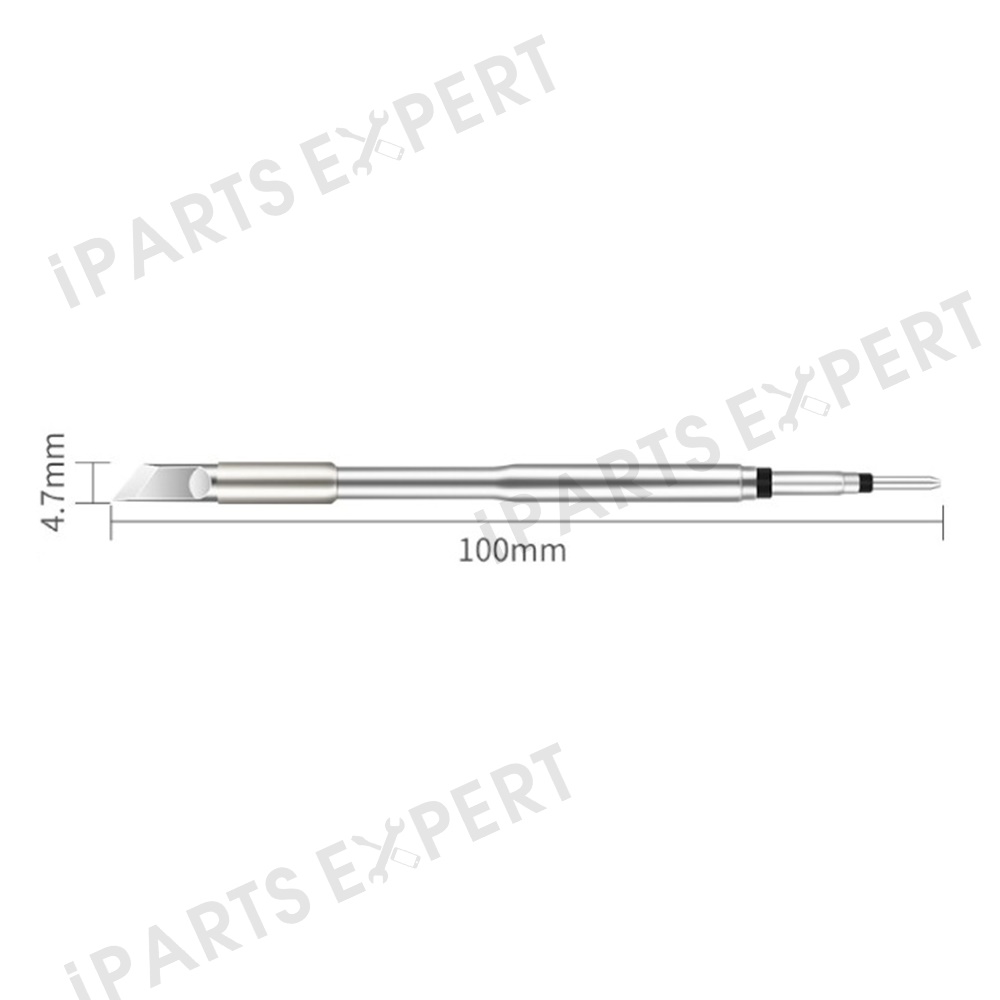

- Overall Length: 100mm
- Tip Diameter: 0.4mm (0.016 inch)
- Knife Edge Length: 13.5mm (0.531 inch)
- Knife Edge Width: 6mm (0.236 inch)
- Overall Height: 4.7mm
- Temperature Range: 200℃ to 450℃
- Base Material: Oxygen-free Copper
- Housing Material: Stainless Steel
- Plating Layers: Multi-layer (Tin/Nickel/Chrome/Iron)
Package included:
- 1 x JBC C245-939 Soldering Iron Tip
