Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces

Rate: ( 0 reviews ) views: 1

Item No.: 231401525A Ships in 1 - 3 days MOQ: 1

Price: $ 166.96

Qty:
-
+
Buy more, save more
1+ units 2+ units 5+ units 10+ units 20+ units
$ 166.96 $ 162.99 $ 157.68 $ 155.03 $ 152.38
Found lower price elsewhere?Alert Us
Contact Sales Manager

Specifications

  • Retail Packaging :No Package
  • User Manual (Language) :No User Manual
  • Gross Weight :0.168kg
  • Volume Weight :0.784kg
  • Length :25.000cm
  • Width :20.000cm
  • Height :7.000cm
  • Weight :0.150kg
  • EAN :
  • With Retail Packaging :Yes

Product Description

Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces
  • Full-featured professional-grade Medusa PRO software

  • Software fully supports all operations (Read, Write and Edit) with any required memory sections through JTAG, USB and MMC interfaces.

  • Easy and smart Graphical User Interface (GUI), suitable for beginners and for experts

  • Fast repair of target device with Smart-Repair-Files (SRF)

  • SRF contains partition data and other necessary data (help files and diagrams)

  • Data in SRF is compressed (less to download, quicker to work)

  • Built-in Partition Manager: You can edit and save required for your work partitions, this leads to convenient and easy way to service devices

  • With Partition Manager you may open Full Flash file in binary format, edit it and write it back to the device

  • Simple per-partition operations (Read, Write, Erase, Edit) of the target storage device

  • Built-in Smart-Repair-File Constructor with Partition Manager for creating custom SRFs

  • SRF file could be taken from the device or read out from Full Flash file in binary format

  • User will be allowed to upload that custom SRF file into separate section of Support Zone for further analysis by developer

  • USB 2.0 high-speed, JTAG support for ARMv5, ARMv6, ARMv7

  • 1-bit and 4-bit MMC bus modes are supported

  • Up to 24MHz JTAG speed. eMMC support up to MMC 5.0 standard

  • Standard 20-pin JTAG interface

  • Transfer speed via JTAG interface, up to 1 MB/s

  • Transfer speed via MMC interface with 4-bit bus, up to 6 MB/S

  • Transfer speed via MMC interface with 1-bit bus, up to 2.2 MB/s

  • USB CCID smart card reader. RJ45 multiport, unibox capable

  • Partition manager. SRF constructor. JTAG PIN finder

  • All measurements were done on ASUS M5A97 R2 motherboard with AMD FX-8370 CPU and with Medusa PRO Box connected to USB 3.0 port, located directly on motherboard

Supported CPUs:

  • Qualcomm MSM6245

  • Qualcomm MSM6246

  • Qualcomm MSM6250 (A)

  • Qualcomm MSM6260

  • Qualcomm MSM6270

  • Qualcomm MSM6275

  • Qualcomm MSM6280 (A)

  • Qualcomm MSM6281

  • Qualcomm MSM6290

  • Qualcomm MSM6800

  • Qualcomm MDM6270

  • Qualcomm MDM8200

  • Qualcomm QSC1100

  • Qualcomm QSC6010

  • Qualcomm QSC6270

  • Qualcomm MSM7200 (A, B)

  • Qualcomm MSM7201 (A, B)

  • Qualcomm MSM7225 (A)

  • Qualcomm MSM7227 (A)

  • Qualcomm MSM7227T

  • Qualcomm MSM7600

  • Qualcomm MSM7625

  • Qualcomm MSM8225

  • Qualcomm MSM8227

  • Qualcomm QSD8250

  • Qualcomm QSD8650

  • Qualcomm APQ8060

  • Qualcomm APQ8064

  • Qualcomm APQ8064T

  • Qualcomm MSM8260

  • Qualcomm MSM8660

  • Qualcomm MSM8930

  • Qualcomm MSM8930 (A, B)

  • Qualcomm MSM8960

  • Samsung S3C6410

  • Samsung S5P6442

  • Samsung S5PC110

  • Samsung S5PC210

  • Samsung S5PV310

  • Broadcom BCM2133

  • Broadcom BCM2153

  • Broadcom BCM2155

  • Broadcom BCM21654

  • HiSilicon HI6731

  • Marvell PXA270

  • Marvell PXA312

  • ST-Ericsson ST-U8500

  • ST-Ericsson ST-U9500

Supported eMMC Models:

  • Samsung eMMC

  • Sandisk eMMC

  • Pretec eMMC

  • Hynix eMMC

  • Unknown (Sandisk) eMMC

  • Toshiba eMMC

  • Micron eMMC

Supported Flash Vendors:

  • AMD

  • Fujitsu

  • Atmel

  • ST Micro

  • Micron

  • Silicon7

  • Intel

  • Toshiba

  • Sharp

  • Samsung

  • Hynix

Supported Flash Devices:

  • AMD/Spansion NOR

  • eMMC

  • Hynix eMMC

  • Hynix H8BCS0QG0MMR

  • Hynix H8BES0UQ0MCR

  • Hynix H8BES0WU0MCR

  • Hynix HYH0SSJ0MF3P

  • Hynix H8ACSOPL0MCR

  • Hynix HYC0SEH0MF3P

  • Intel NOR

  • Micron eMMC

  • Micron 1024Mb

  • Micron 256Mb

  • Micron MT29F1G08

  • Micron MT29F1G16

  • Micron 512Mb

  • Pretec eMMC

  • Samsung eMMC

  • Samsung NOR

  • Samsung 1024Mb

  • Samsung Flex-OneNAND 512Mb

  • Samsung OneNAND 1024Mb

  • Samsung Flex-OneNAND 1024Mb

  • Samsung Flex-OneNAND 1024Mb DDP

  • Samsung OneNAND KFH2G16Q2M

  • Samsung KFH2G16Q4M

  • Samsung OneNAND KFW4G16Q2M DDP Demux

  • Samsung OneNAND KFW4G16Q2M DDP

  • Samsung OneNAND KFG4GH6Q4M

  • Samsung K5G1G13ACH

  • Samsung K9F1208

  • Samsung K9K1216

  • Samsung K9F2808

  • Samsung KBE00500AM

  • Samsung K9F5608

  • Samsung KF92G16

  • Samsung 512Mb

  • Samsung K9K2G08

  • Samsung K9F5608

  • Samsung K91G08

  • Samsung KBE00S00AM

  • Samsung K9LAG08U0M

  • Sandisk eMMC

  • ST Electronics NOR

  • ST Micro 128MB

  • ST Micro 512MB

  • Toshiba TC58NW

  • Toshiba TC58512FT

  • Toshiba TY9000AC10AOBG

  • Toshiba TCDAM82F1

  • Toshiba TC58DDM92F2

  • Toshiba TY9000A800J0GG

  • Toshiba TC58NYG0S3CXGJS

  • Toshiba TYA000BC00DOGG

  • Toshiba TH58NYG2S8C

  • Toshiba TC58NYG1S8C

  • Toshiba TH58NYG2S3C

  • Toshiba TC58512FT

  • Unknown (Sandisk) eMMC

  • Unknown eMMC

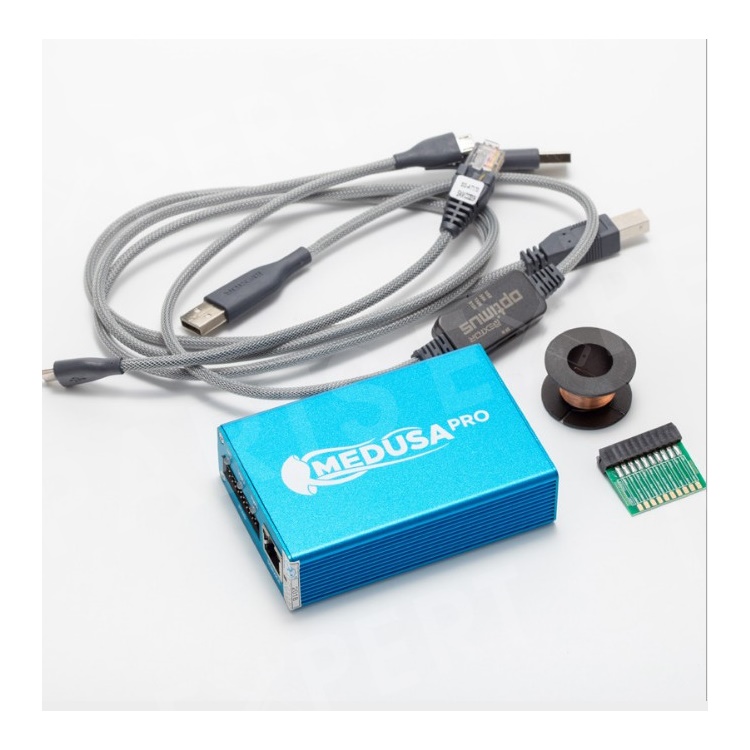

Package included:

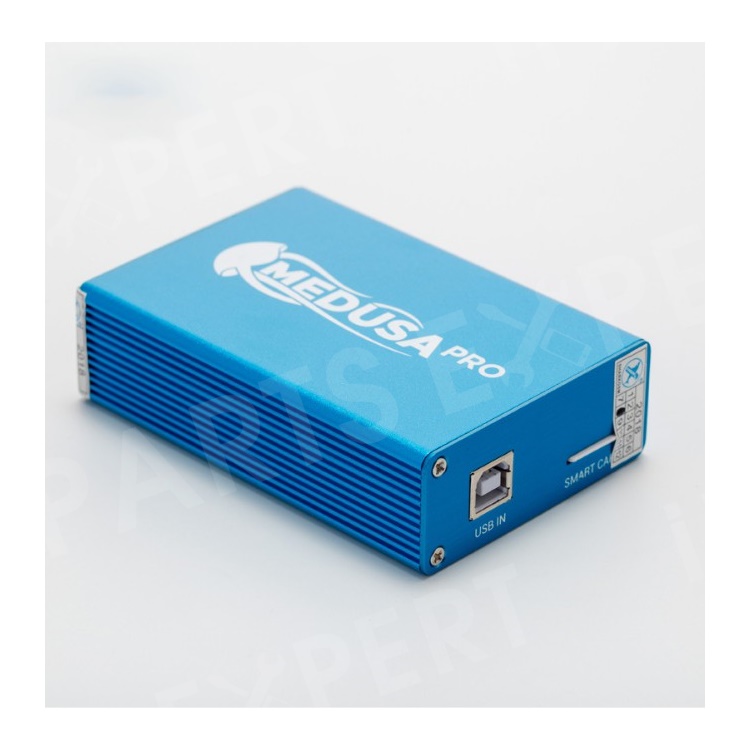

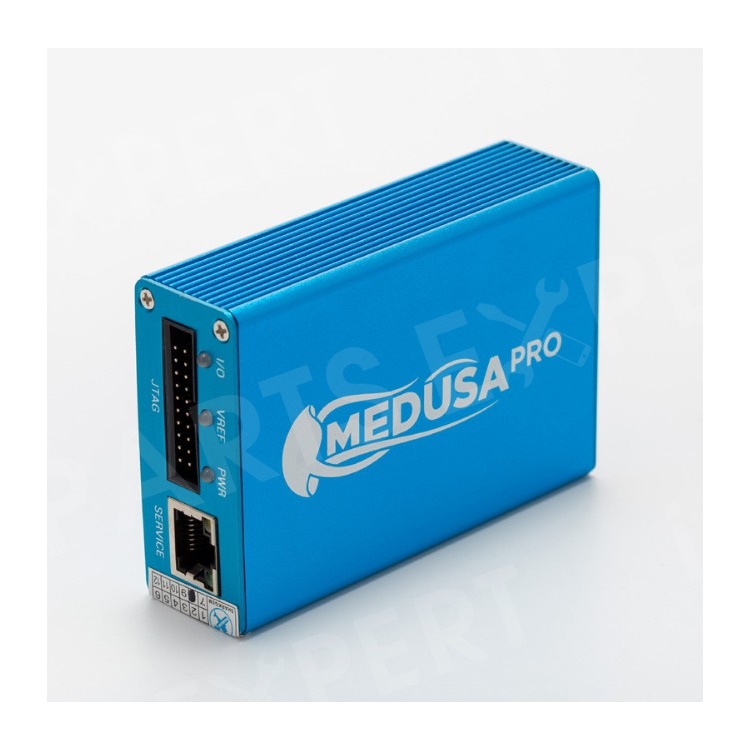

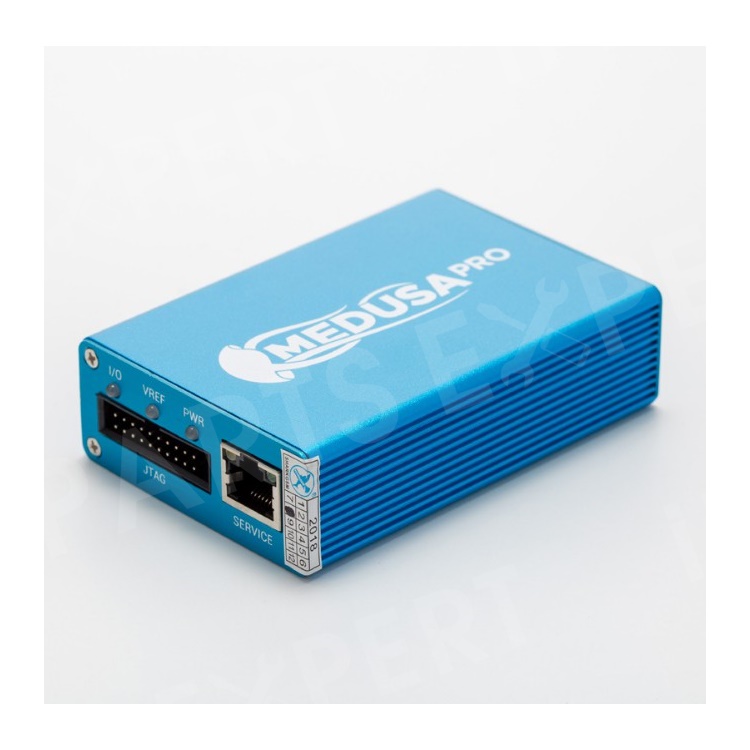

  • 1 x Medusa Pro Box
  • 1 x Micro UART Cable (with 530K resistor) for Samsung C3303K

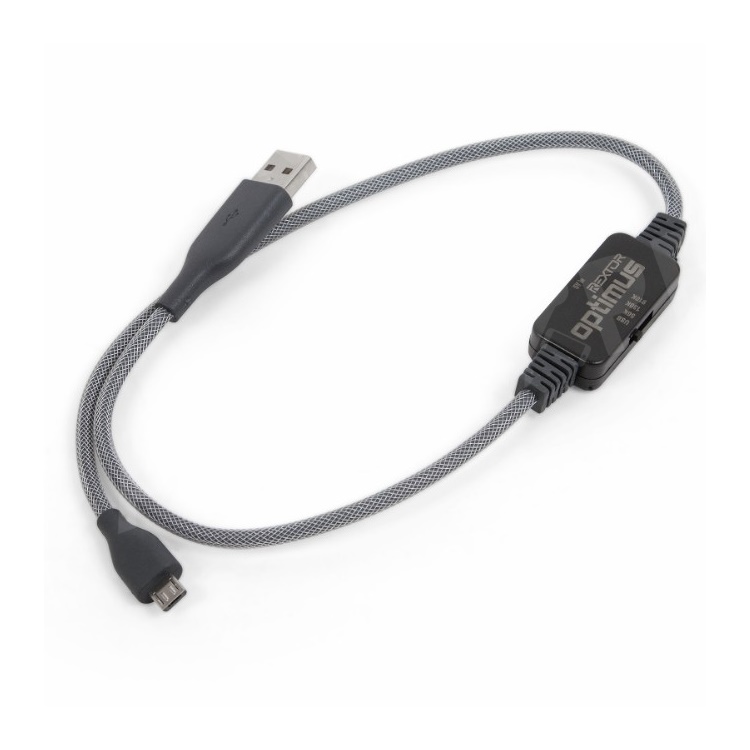

  • 1 x Optimus Cable
  • 1 x Medusa Pro JIG Adapter
  • 1 x Copper Wire 0.1 mm
  • 1 x USB A-B Cable
